Current Diagnostic Approach and Therapy Selection for Thyroid Nodules

A 20-slide presentation covering thyroid-nodule diagnosis, molecular testing, ablative treatment, and surgical approaches.

Presented by Dr. dr. Bob Andinata, Sp.B., Subsp. Onk(K) · Published: Source: Original presentation supplied for the 19 September 2026 thyroid-nodule seminarManagement of Thyroid Nodules — How to Make a Good Diagnosis? · 19 September 2026
Read presentationQuick Read

20 original slides in source order. Select a slide to enlarge it, read its selectable text, or inspect its original figures. The accompanying video appears with slide 3.

Slide 01

Original PDF · page 1 of 20
Read selectable slide text

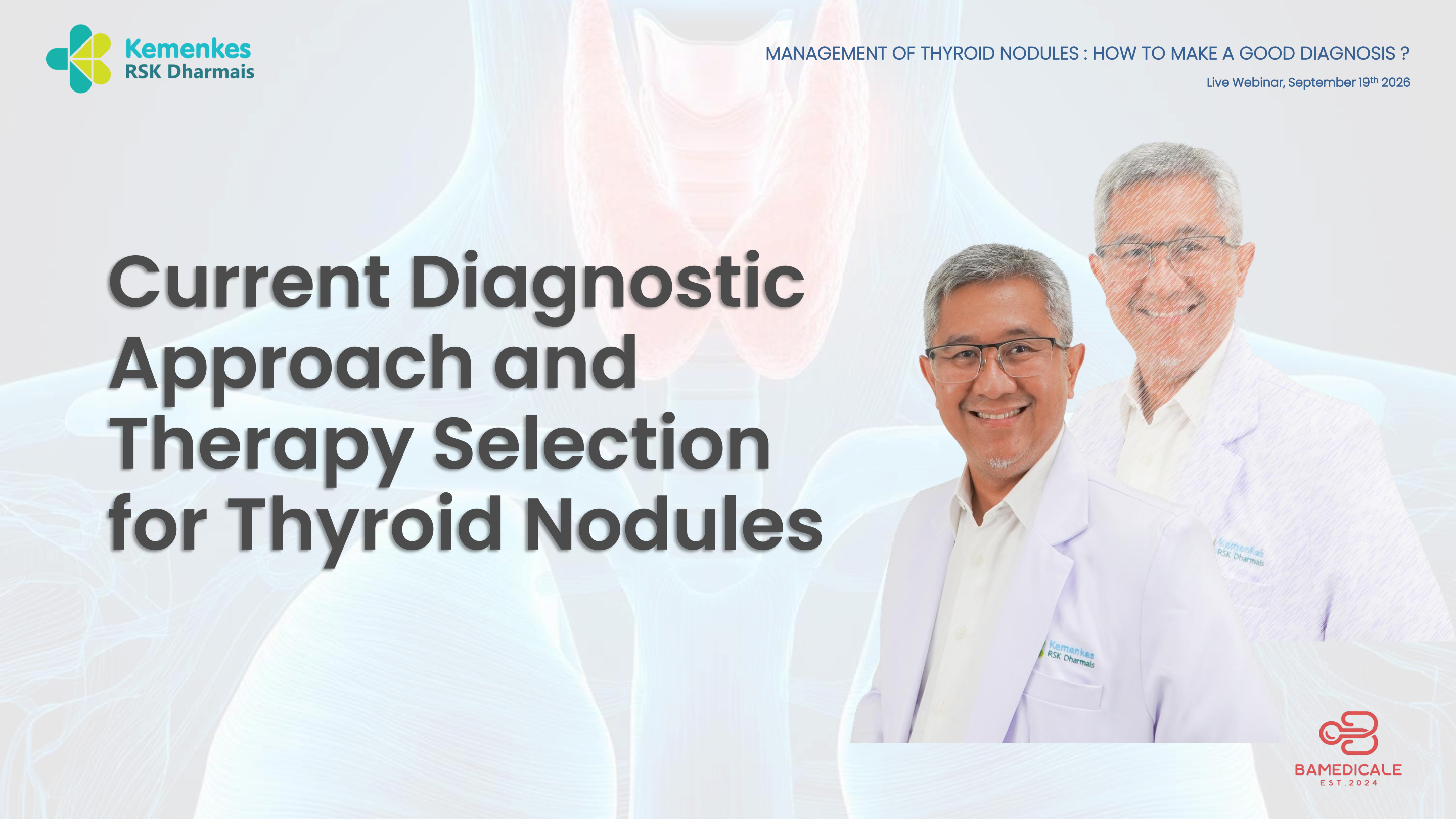

MANAGEMENT OF THYROID NODULES : HOW TO MAKE A GOOD DIAGNOSIS ?
Live Webinar, September 19th 2026
Current Diagnostic
Approach and
Therapy Selection
for Thyroid Nodules
Inspect original figures
Original embedded figure 1 from PDF page 1Original embedded figure 2 from PDF page 1Original embedded figure 3 from PDF page 1Original embedded figure 4 from PDF page 1

Slide 02

Original PDF · page 2 of 20
Read selectable slide text
MANAGEMENT OF THYROID NODULES :
HOW TO MAKE A GOOD DIAGNOSIS ?
Live Webinar, September 19th 2026

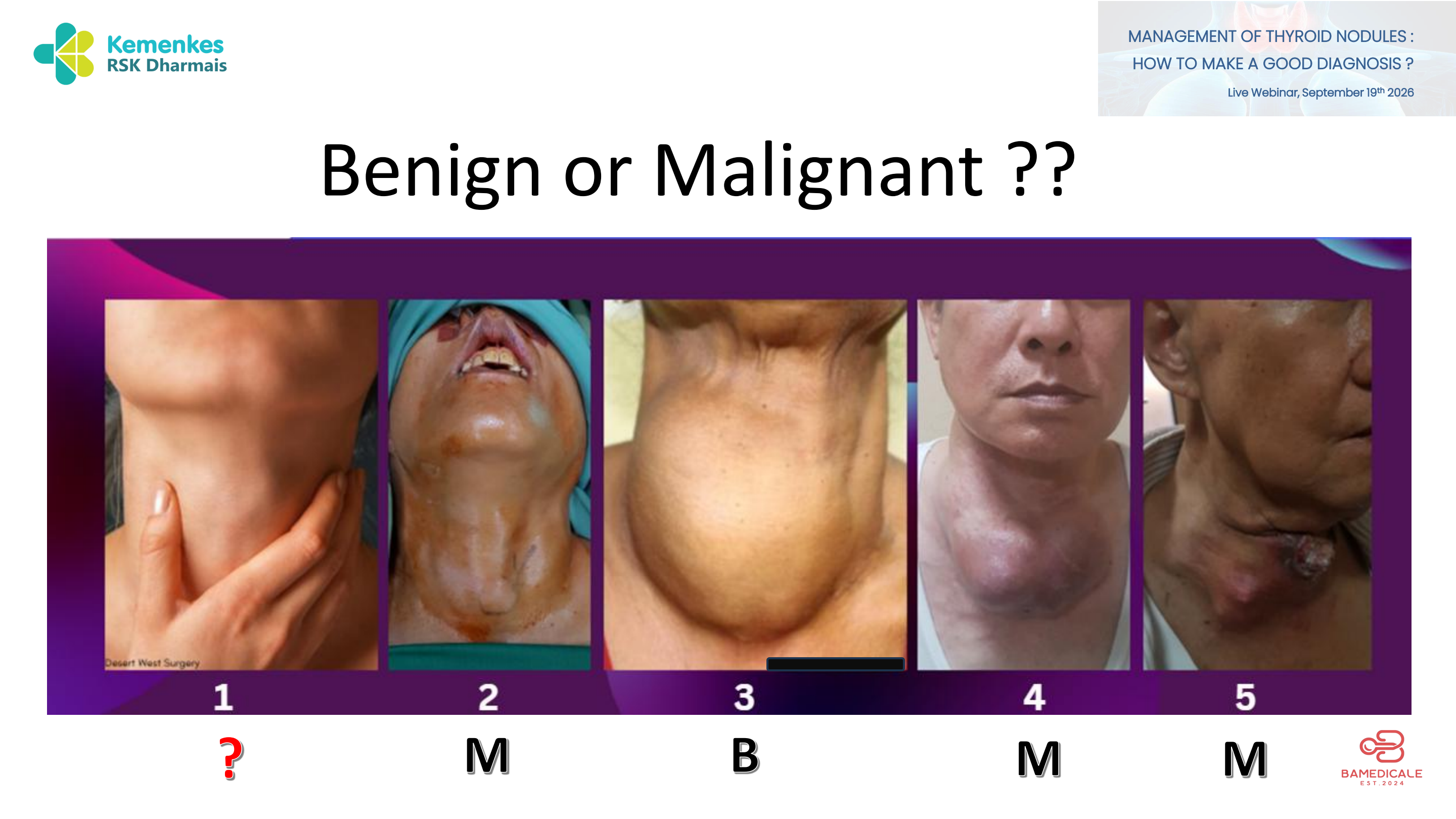

Benign or Malignant ??
?
 B
M
 M
 M
Inspect original figures
Original embedded figure 1 from PDF page 2Original embedded figure 2 from PDF page 2Original embedded figure 3 from PDF page 2Original embedded figure 4 from PDF page 2Original embedded figure 5 from PDF page 2Original embedded figure 6 from PDF page 2Original embedded figure 7 from PDF page 2

Slide 03

Original PDF · page 3 of 20
Original presentation video · page 3. Use the player controls for sound and full-screen viewing.
Read selectable slide text
MANAGEMENT OF THYROID NODULES :
HOW TO MAKE A GOOD DIAGNOSIS ?
Live Webinar, September 19th 2026
Inspect original figures
Original embedded figure 1 from PDF page 3Original embedded figure 2 from PDF page 3Original embedded figure 3 from PDF page 3Original embedded figure 4 from PDF page 3

Slide 04

Original PDF · page 4 of 20
Read selectable slide text
MANAGEMENT OF THYROID NODULES :
HOW TO MAKE A GOOD DIAGNOSIS ?
Live Webinar, September 19th 2026

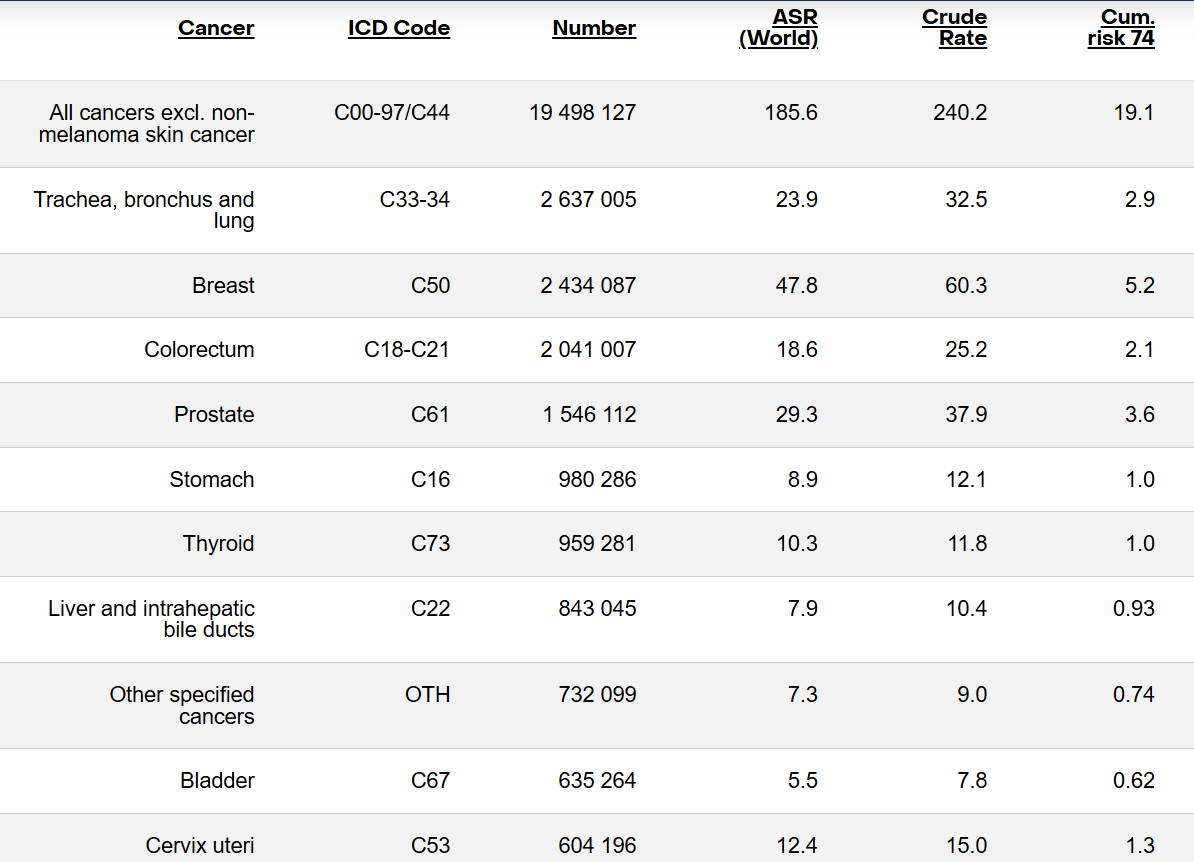

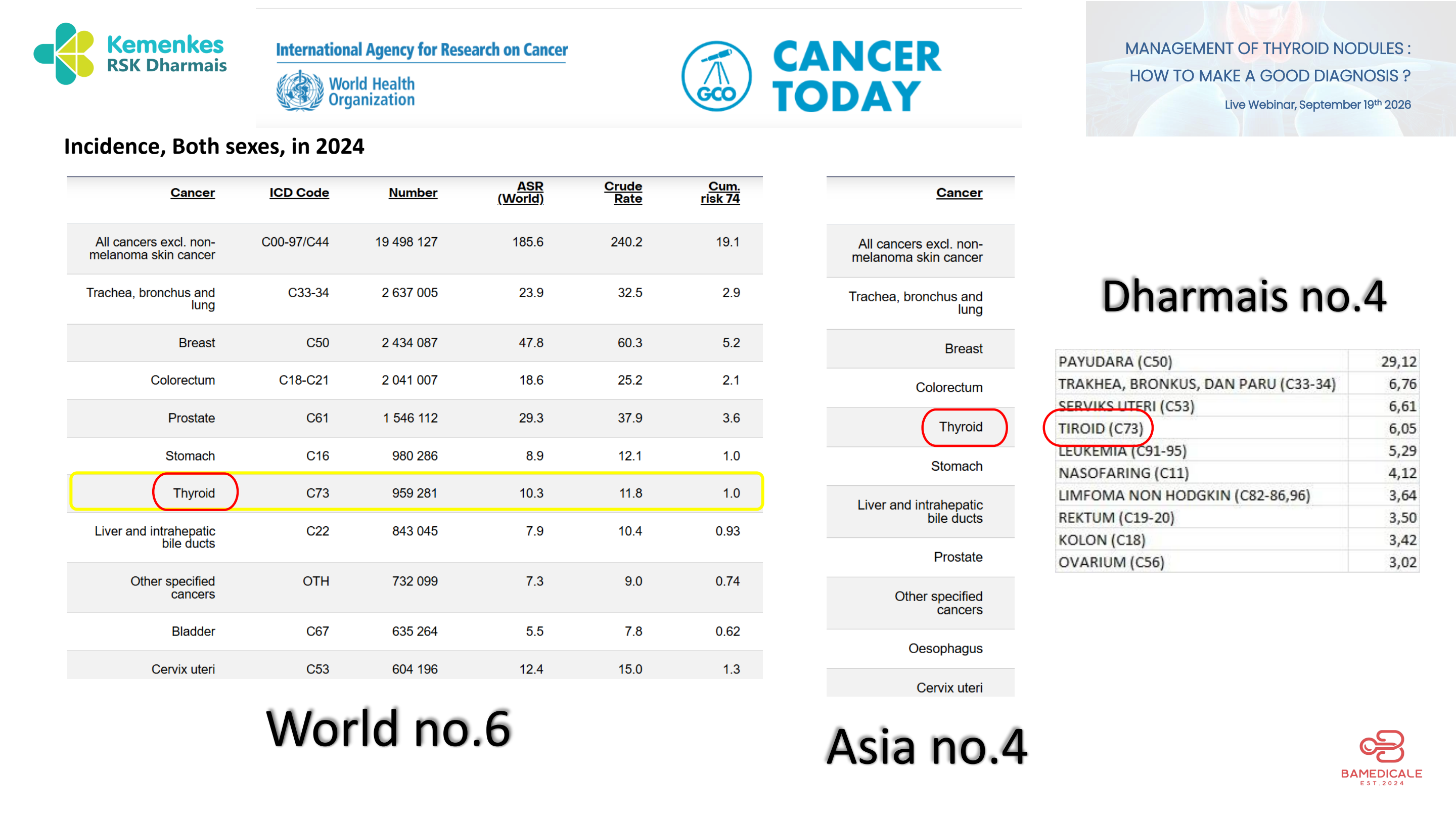

World no.6
 Asia no.4

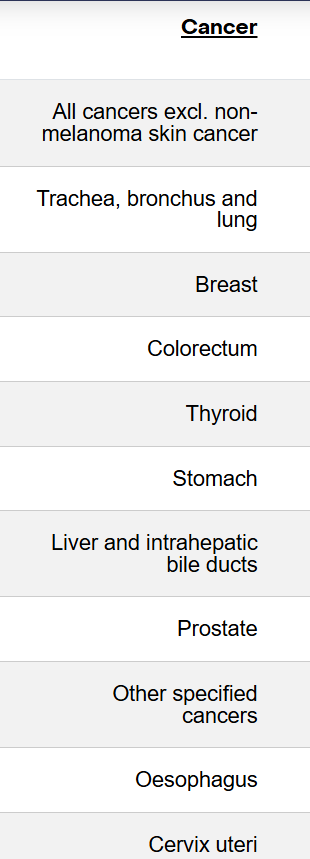

Incidence, Both sexes, in 2024

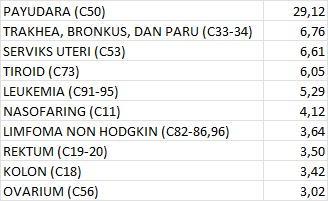

Dharmais

no.4
Inspect original figures
Original embedded figure 1 from PDF page 4Original embedded figure 2 from PDF page 4Original embedded figure 3 from PDF page 4Original embedded figure 4 from PDF page 4Original embedded figure 5 from PDF page 4Original embedded figure 6 from PDF page 4Original embedded figure 7 from PDF page 4Original embedded figure 8 from PDF page 4Original embedded figure 9 from PDF page 4Original embedded figure 10 from PDF page 4Original embedded figure 11 from PDF page 4Original embedded figure 12 from PDF page 4

Slide 05

Original PDF · page 5 of 20
Read selectable slide text

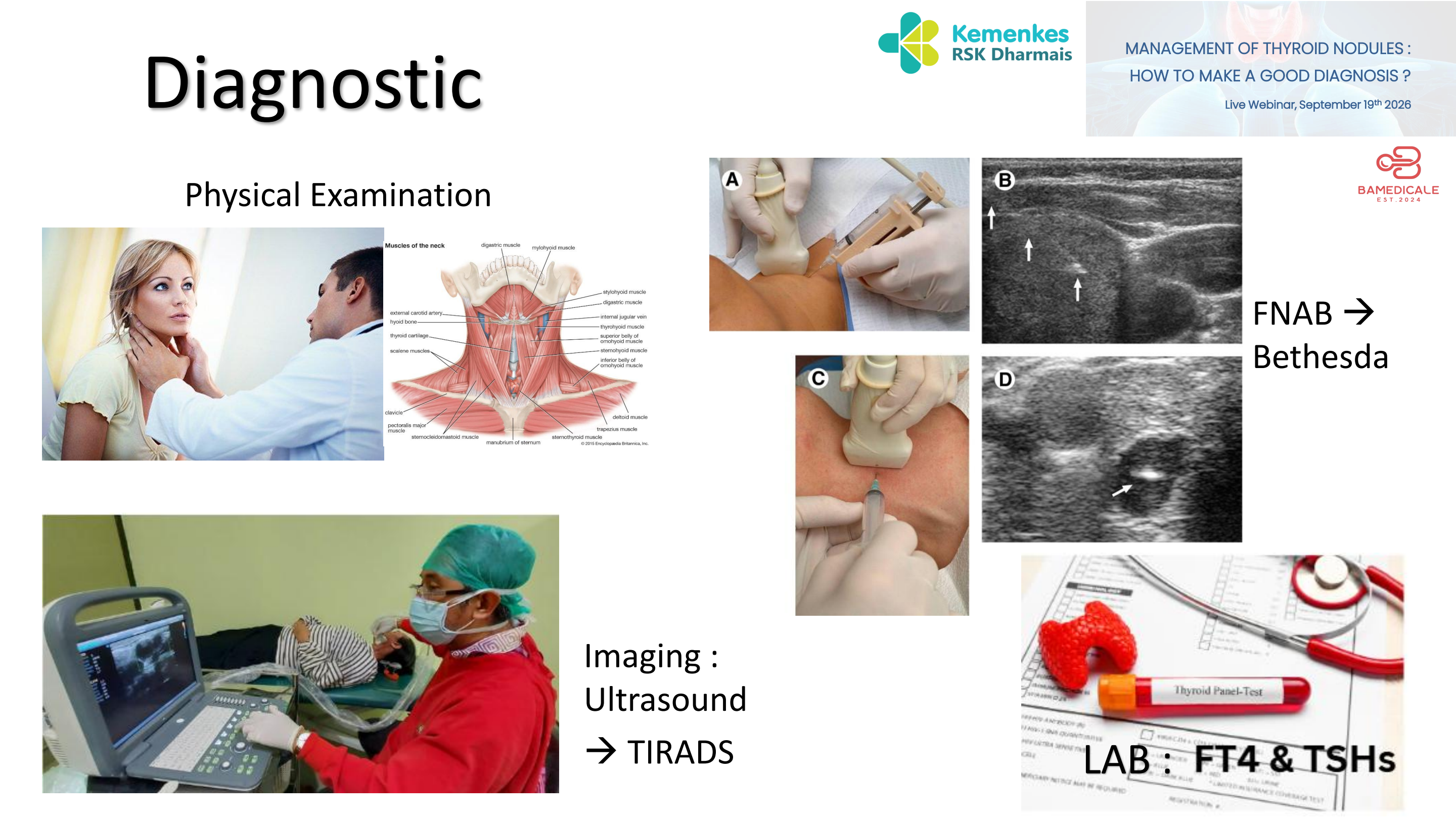

Diagnostic
Physical Examination
MANAGEMENT OF THYROID NODULES :
HOW TO MAKE A GOOD DIAGNOSIS ?
Live Webinar, September 19th 2026
FNAB →
Bethesda

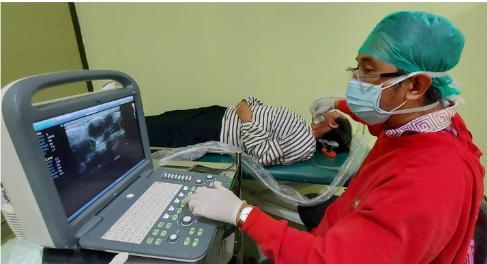

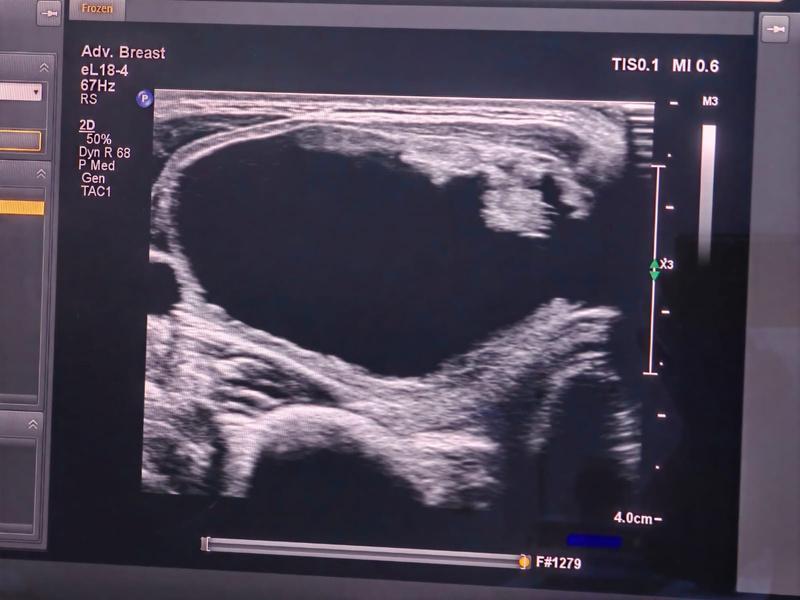

Imaging :
Ultrasound
→ TIRADS
 LAB :
Inspect original figures
Original embedded figure 1 from PDF page 5Original embedded figure 2 from PDF page 5Original embedded figure 3 from PDF page 5Original embedded figure 4 from PDF page 5Original embedded figure 5 from PDF page 5Original embedded figure 6 from PDF page 5Original embedded figure 7 from PDF page 5Original embedded figure 8 from PDF page 5Original embedded figure 9 from PDF page 5

Slide 06

Original PDF · page 6 of 20
Read selectable slide text
MANAGEMENT OF THYROID NODULES :
HOW TO MAKE A GOOD DIAGNOSIS ?
Live Webinar, September 19th 2026
Inspect original figures
Original embedded figure 1 from PDF page 6

Slide 07

Original PDF · page 7 of 20
Read selectable slide text
MANAGEMENT OF THYROID NODULES :
HOW TO MAKE A GOOD DIAGNOSIS ?
Live Webinar, September 19th 2026

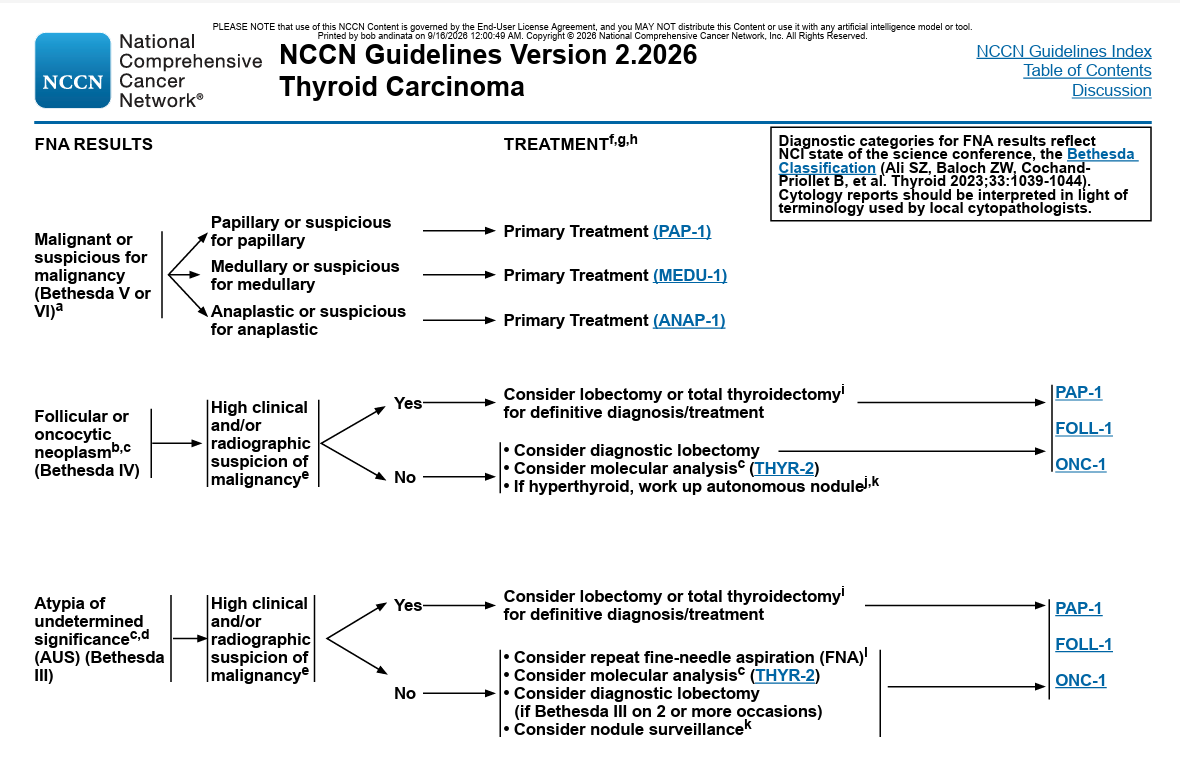

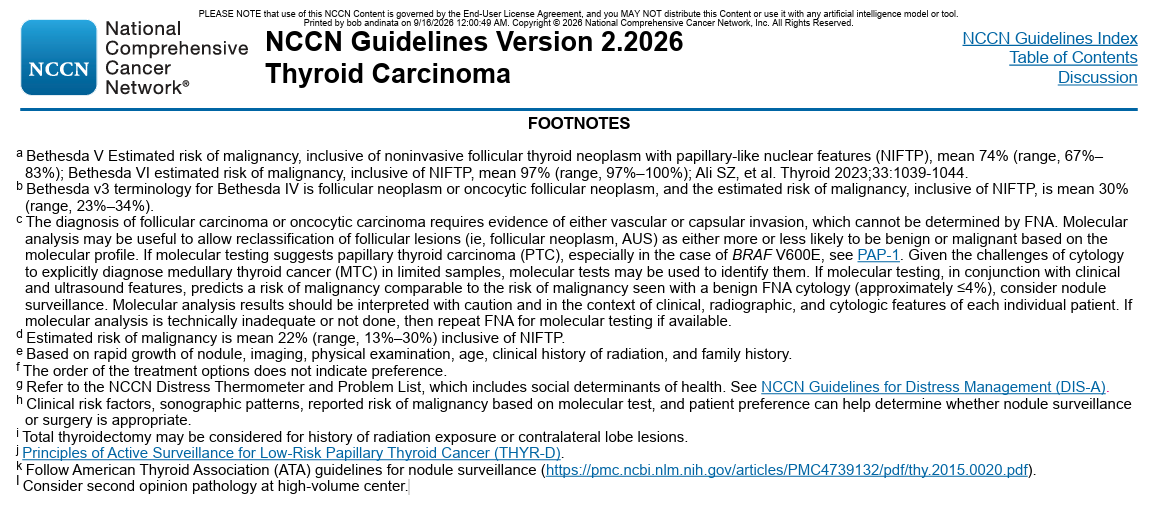

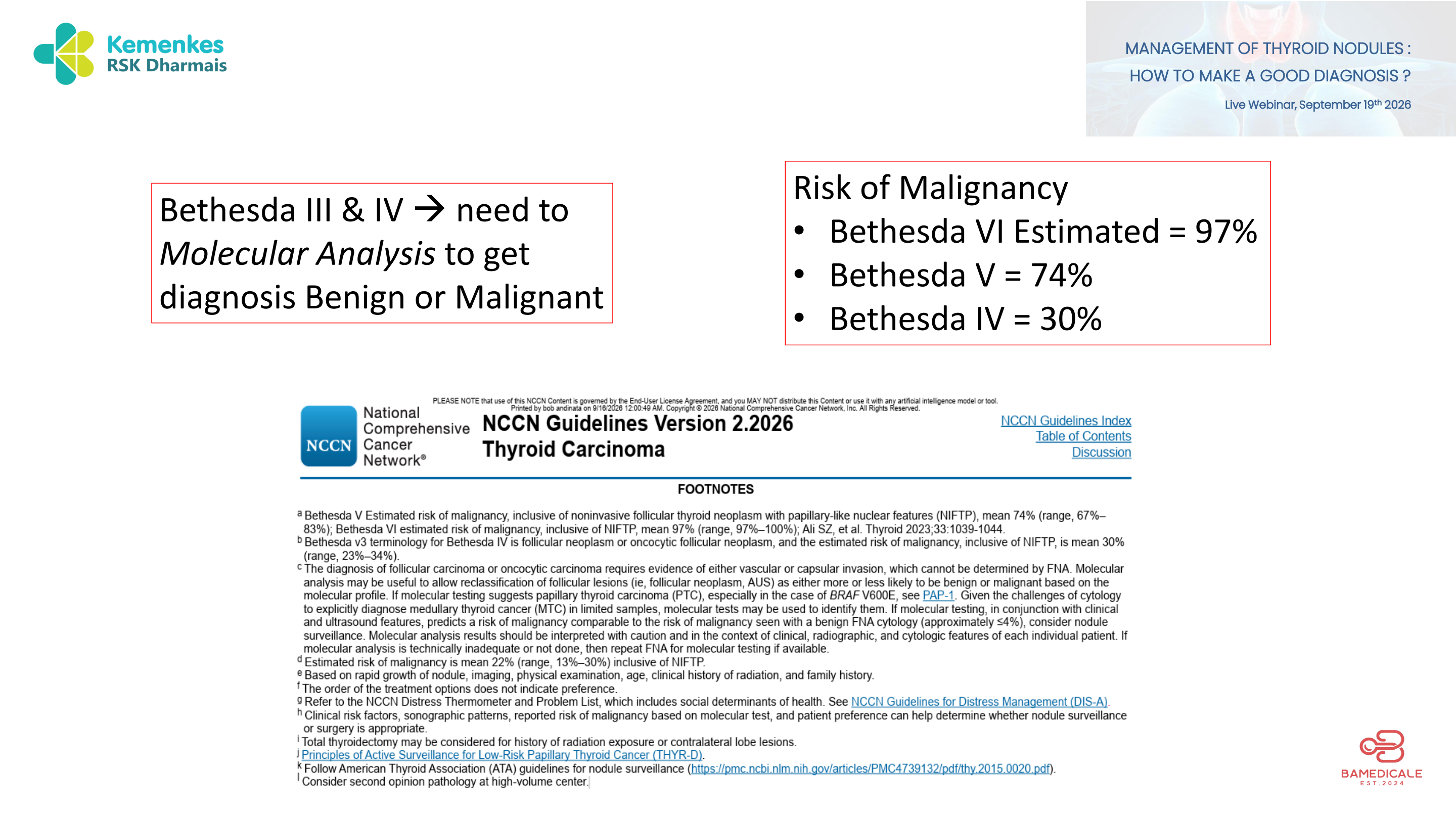

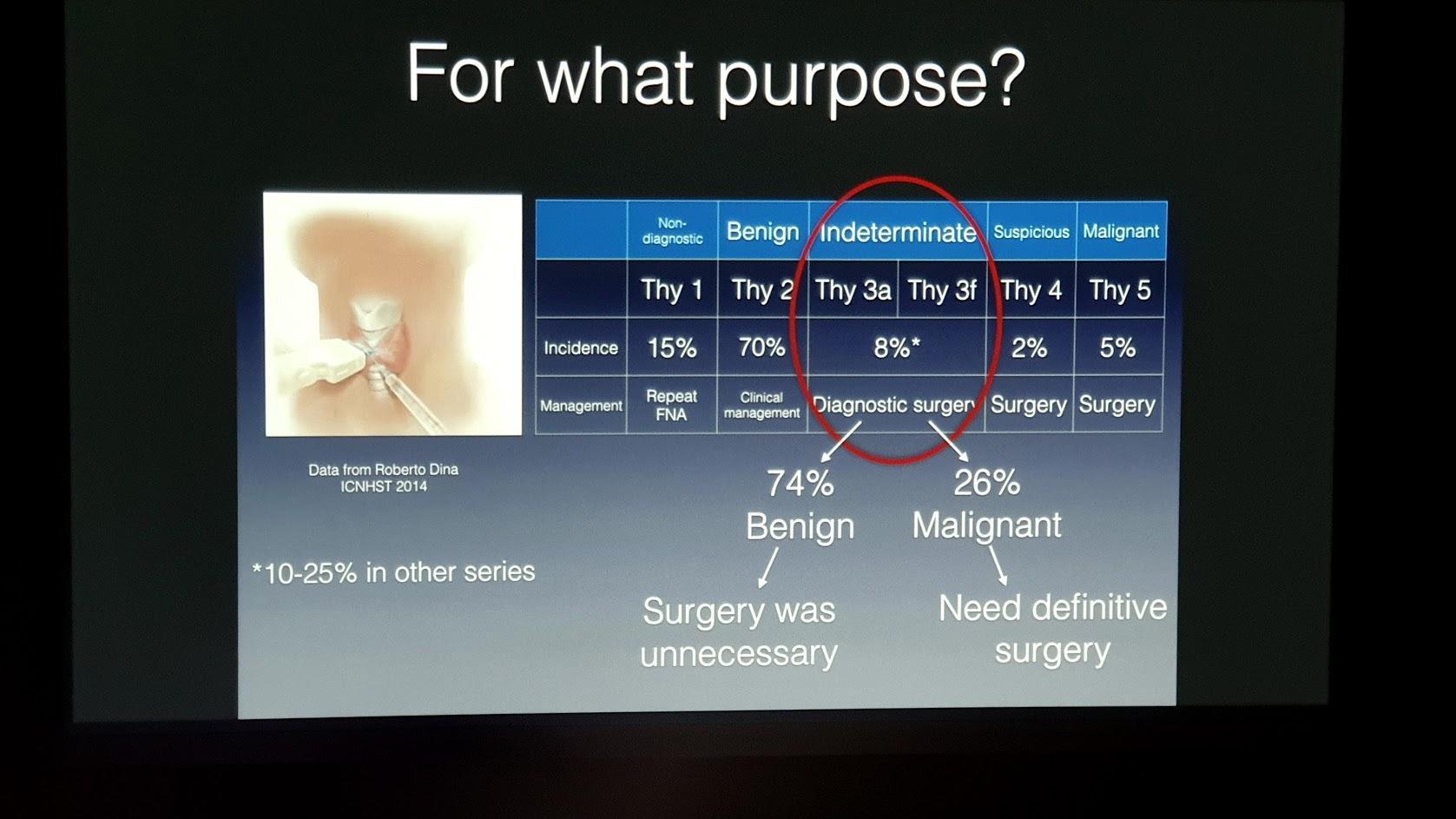

Risk of Malignancy
• Bethesda VI Estimated = 97%
• Bethesda V = 74%
• Bethesda IV = 30%
Bethesda III & IV → need to
Molecular Analysis to get
diagnosis Benign or Malignant
Inspect original figures
Original embedded figure 1 from PDF page 7

Slide 08

Original PDF · page 8 of 20
Read selectable slide text
MANAGEMENT OF THYROID NODULES :
HOW TO MAKE A GOOD DIAGNOSIS ?
Live Webinar, September 19th 2026

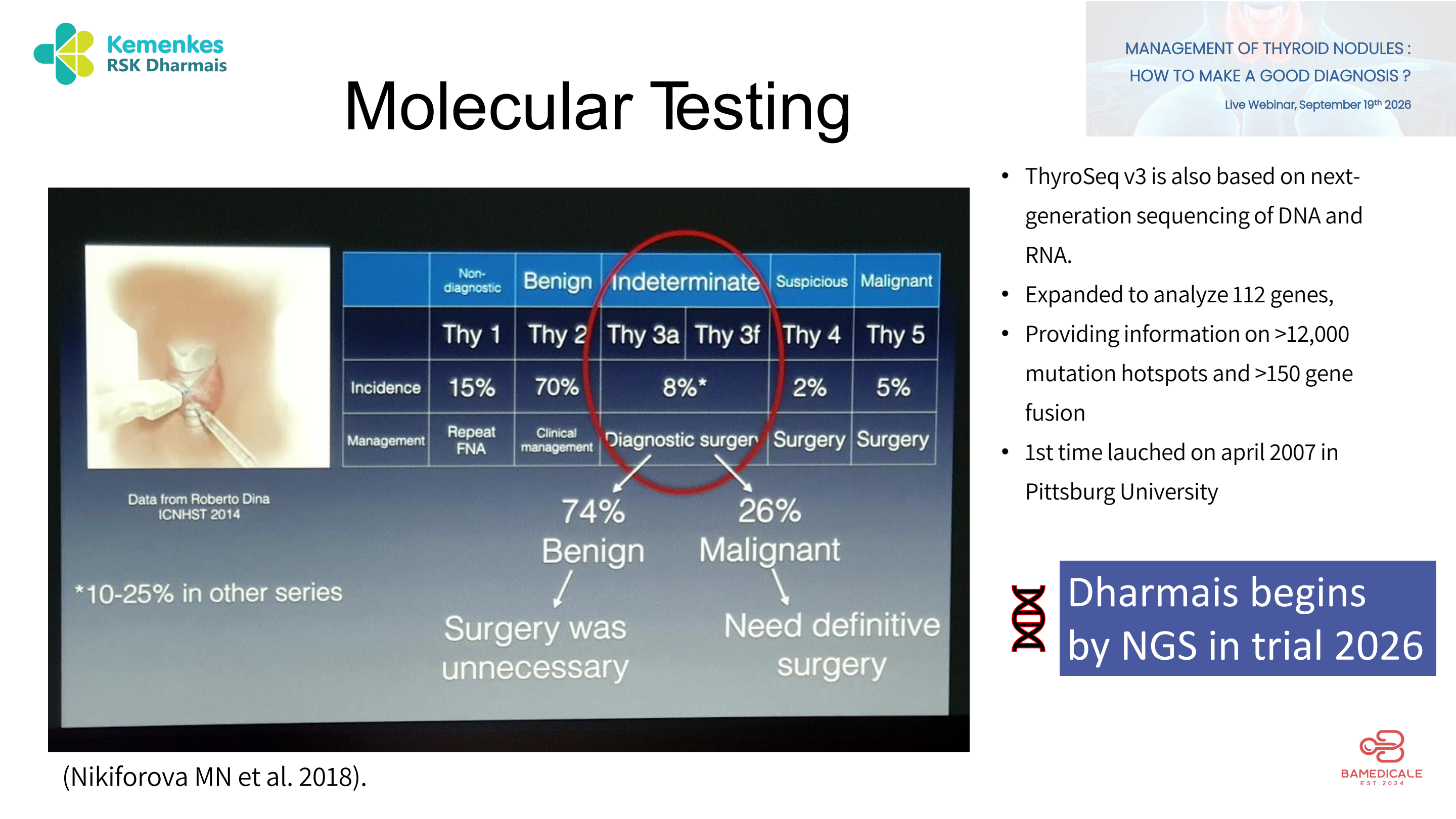

Molecular T esting
• ThyroSeq v3 is also based on next-
generation sequencing of DNA and
RNA.
• Expanded to analyze 112 genes,
• Providing information on >12,000
mutation hotspots and >150 gene
fusion
• 1st time lauched on april 2007 in
Pittsburg University
Dharmais begins
by NGS in trial 2026
(Nikiforova MN et al. 2018).
Inspect original figures
Original embedded figure 1 from PDF page 8

Slide 09

Original PDF · page 9 of 20
Read selectable slide text
MANAGEMENT OF THYROID NODULES :
HOW TO MAKE A GOOD DIAGNOSIS ?
Live Webinar, September 19th 2026

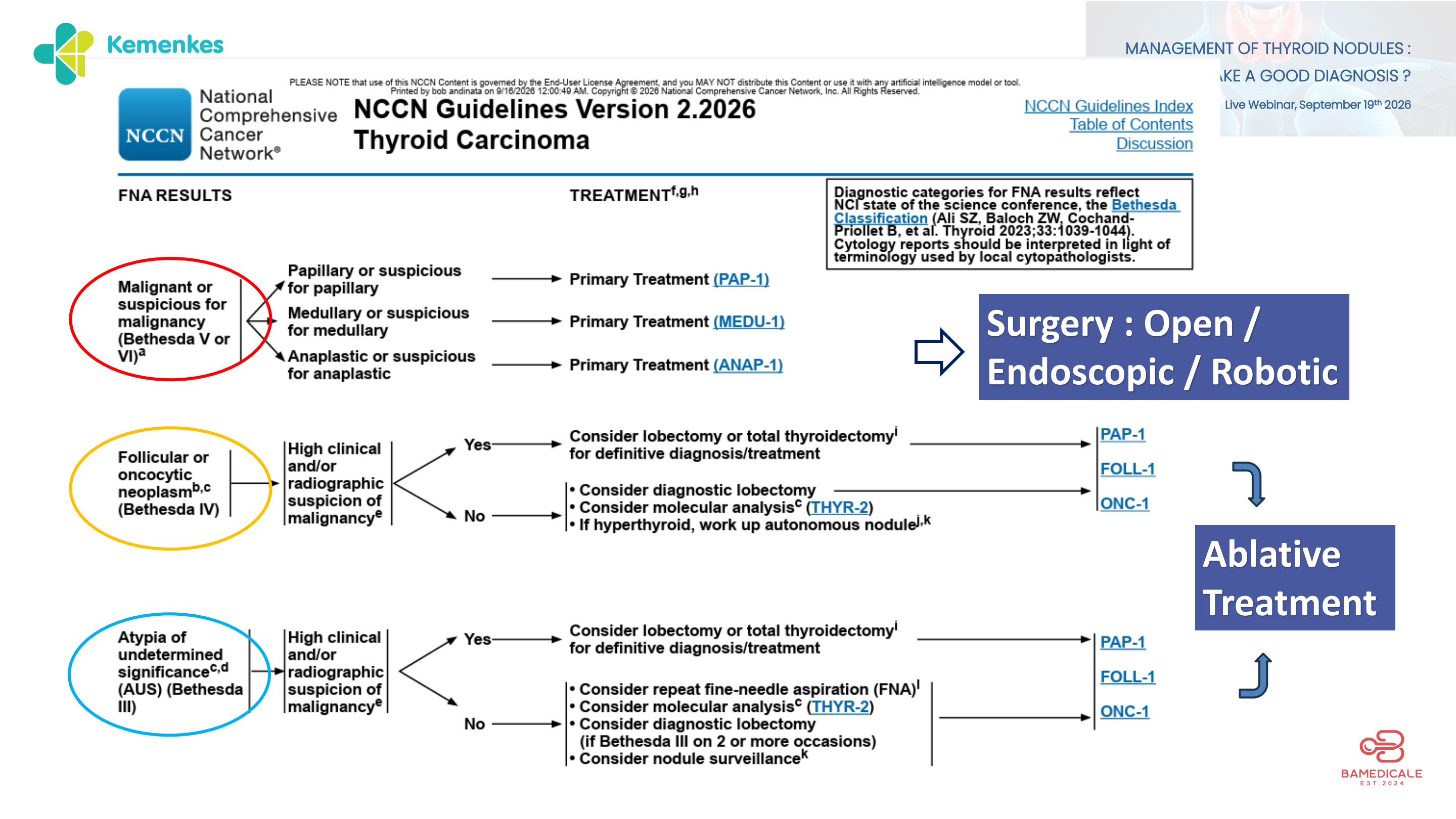

Surgery : Open /
Endoscopic / Robotic
Ablative
Treatment
Inspect original figures
Original embedded figure 1 from PDF page 9Original embedded figure 2 from PDF page 9Original embedded figure 3 from PDF page 9Original embedded figure 4 from PDF page 9Original embedded figure 5 from PDF page 9

Slide 10

Original PDF · page 10 of 20
Read selectable slide text
MANAGEMENT OF THYROID NODULES :
HOW TO MAKE A GOOD DIAGNOSIS ?
Live Webinar, September 19th 2026

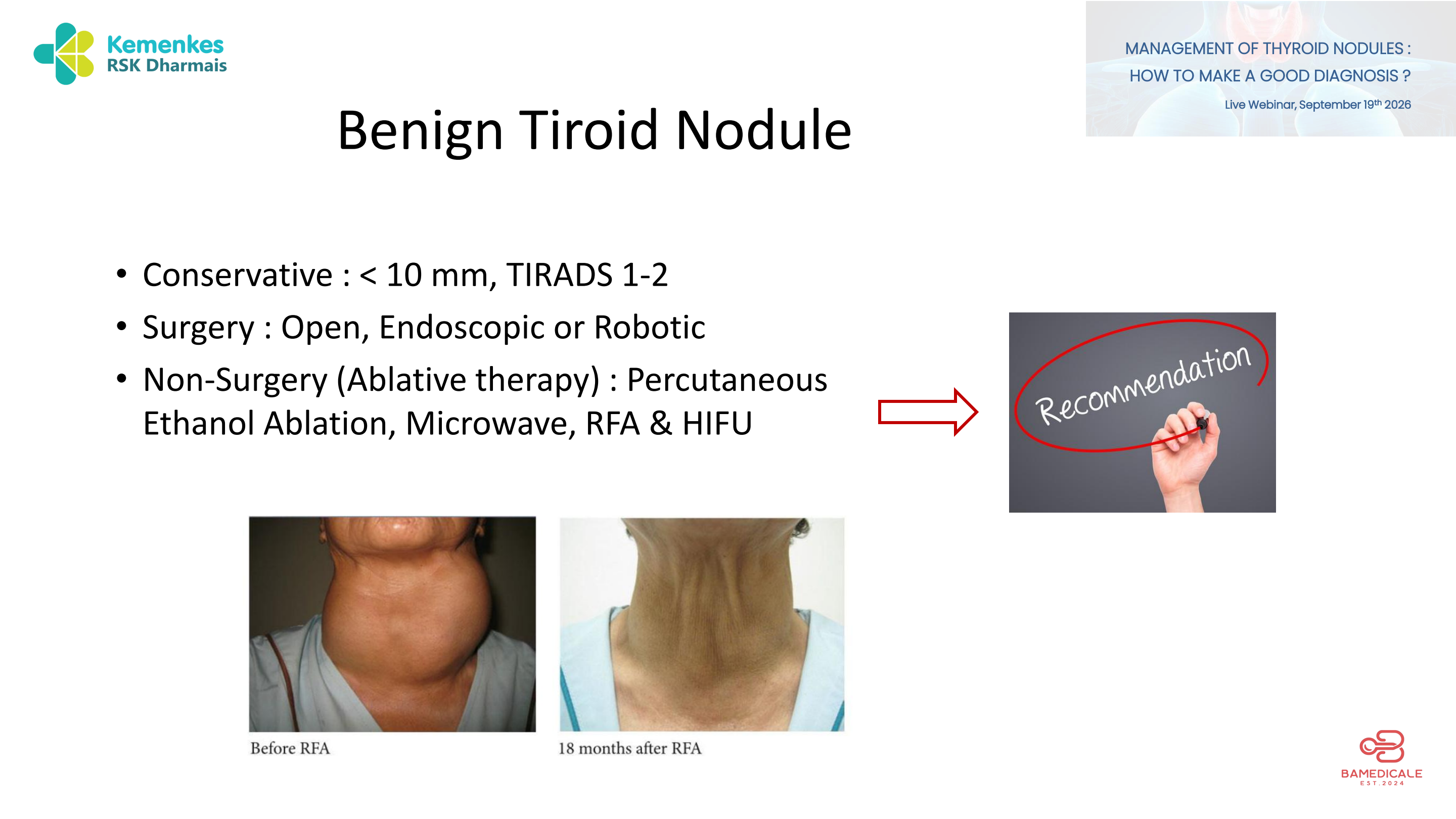

• Conservative : < 10 mm, TIRADS 1-2
• Surgery : Open, Endoscopic or Robotic
• Non-Surgery (Ablative therapy) : Percutaneous
Ethanol Ablation, Microwave, RFA & HIFU
Benign Tiroid Nodule
Inspect original figures
Original embedded figure 1 from PDF page 10Original embedded figure 2 from PDF page 10

Slide 11

Original PDF · page 11 of 20
Read selectable slide text

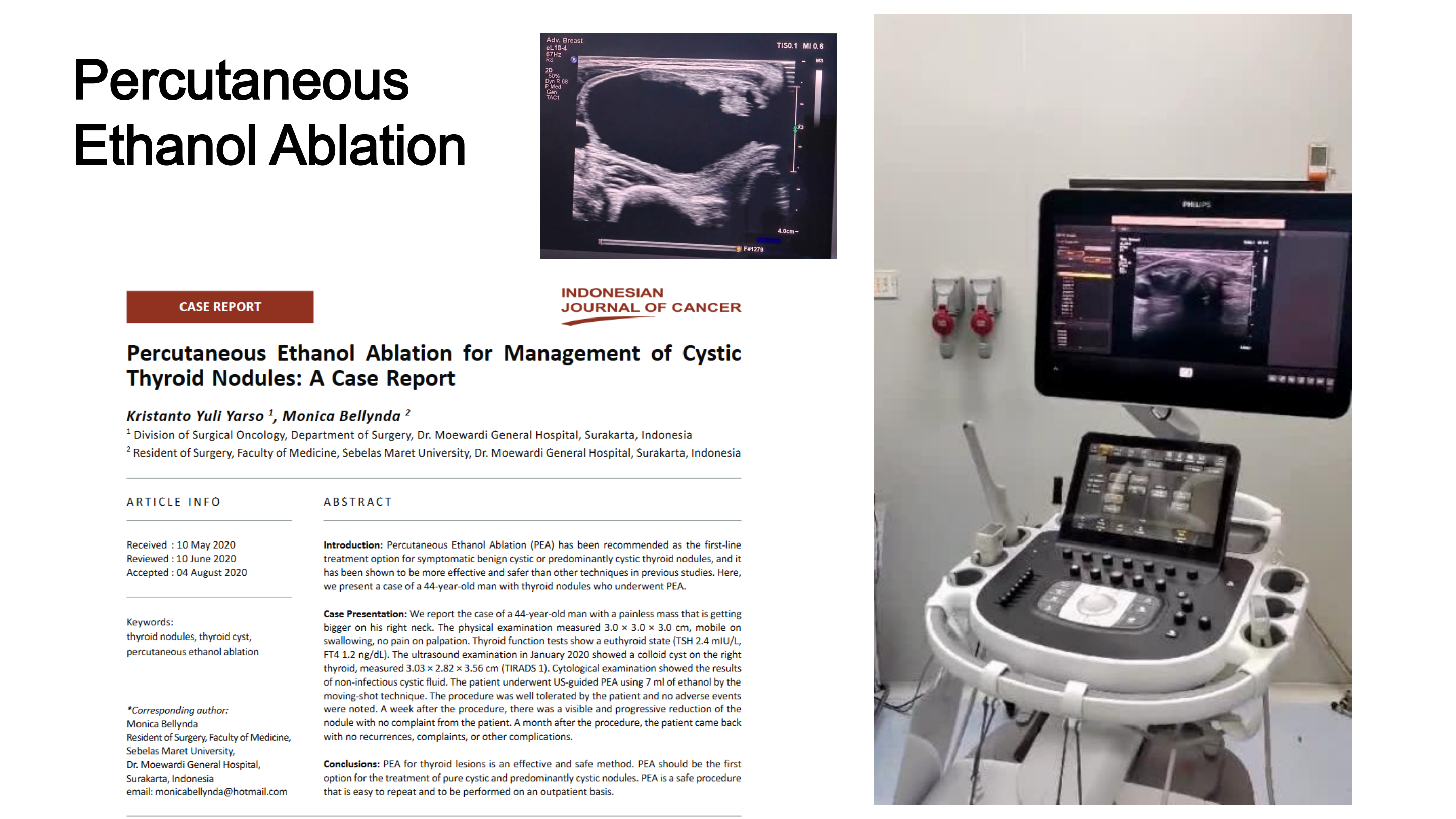

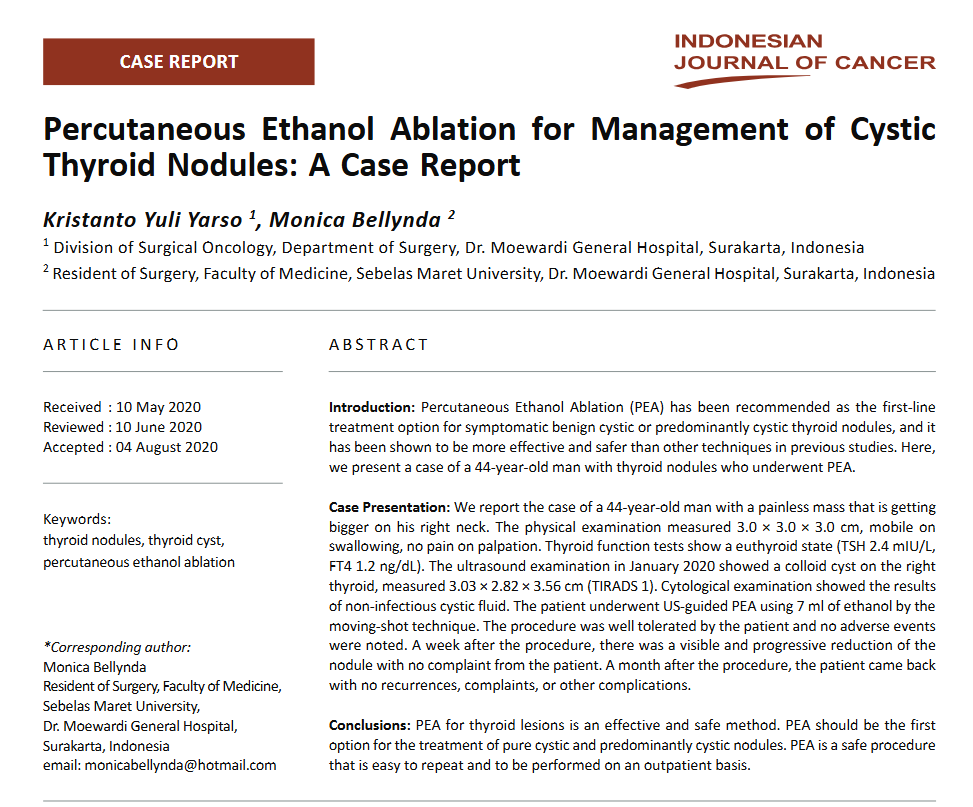

Percutaneous
Ethanol Ablation
Inspect original figures
Original embedded figure 1 from PDF page 11Original embedded figure 2 from PDF page 11Original embedded figure 3 from PDF page 11

Slide 12

Original PDF · page 12 of 20
Read selectable slide text

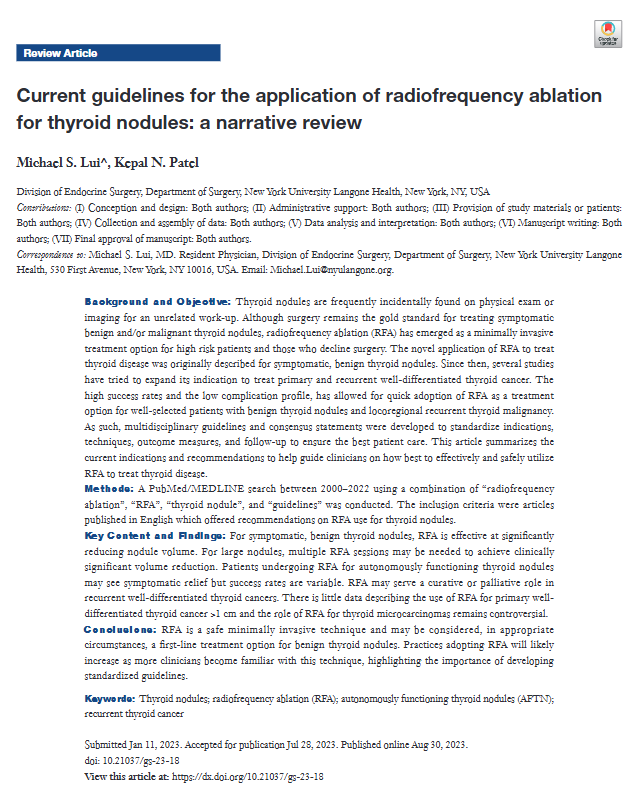

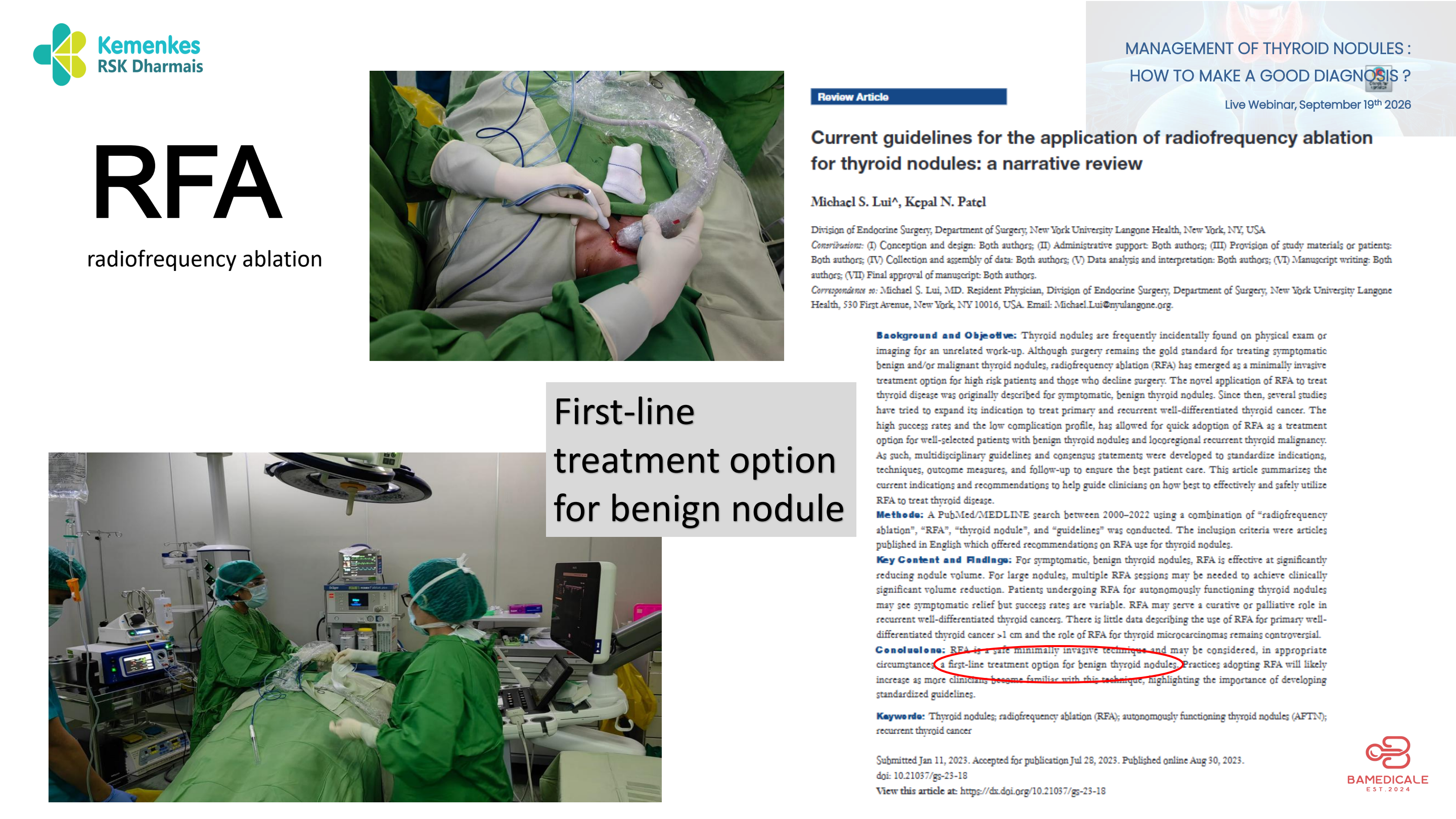

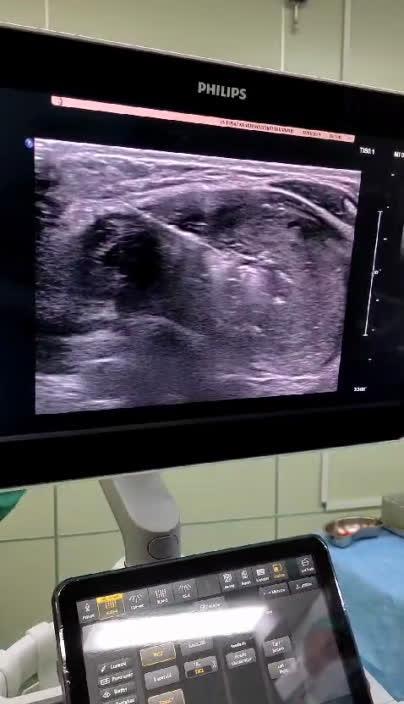

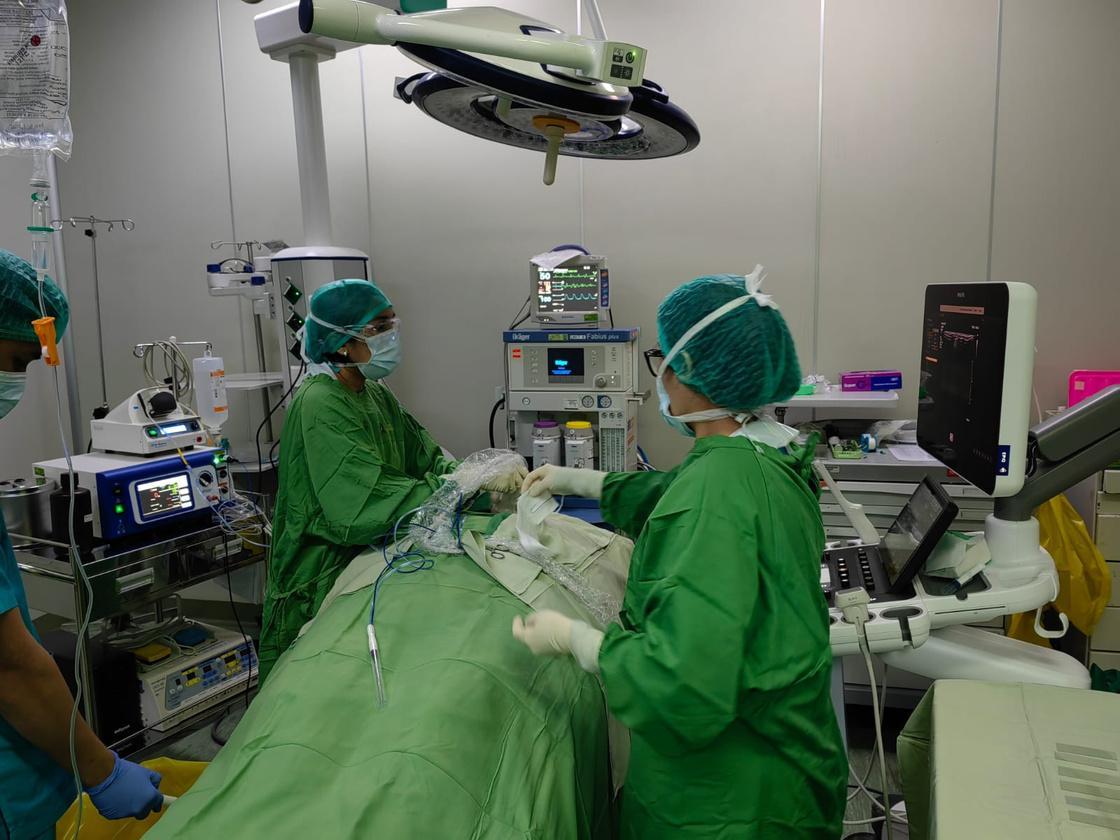

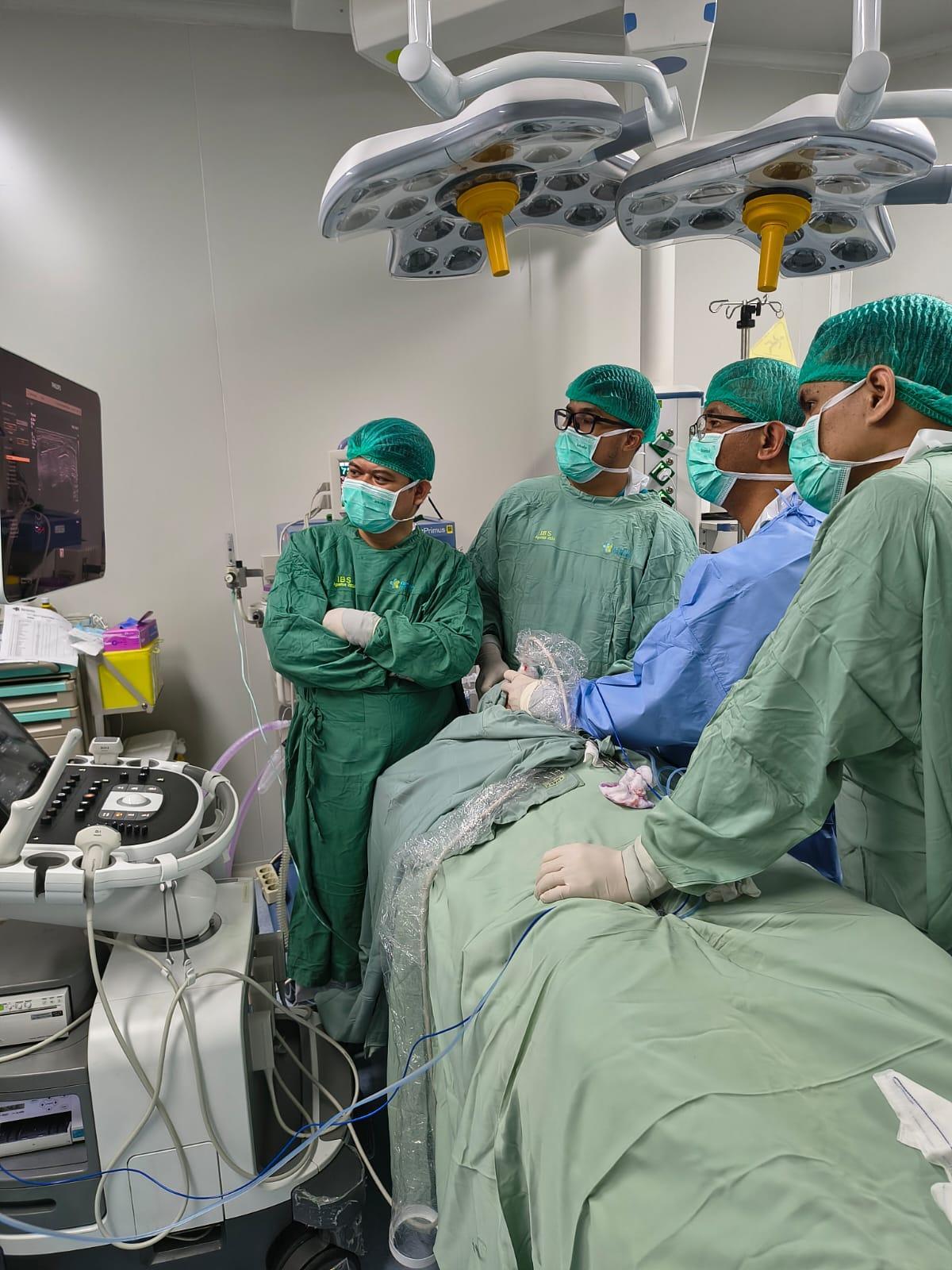

RFA
radiofrequency ablation
MANAGEMENT OF THYROID NODULES :
HOW TO MAKE A GOOD DIAGNOSIS ?
Live Webinar, September 19th 2026
First
-
line
treatment option
for benign nodule
Inspect original figures
Original embedded figure 1 from PDF page 12Original embedded figure 2 from PDF page 12Original embedded figure 3 from PDF page 12Original embedded figure 4 from PDF page 12Original embedded figure 5 from PDF page 12Original embedded figure 6 from PDF page 12Original embedded figure 7 from PDF page 12Original embedded figure 8 from PDF page 12

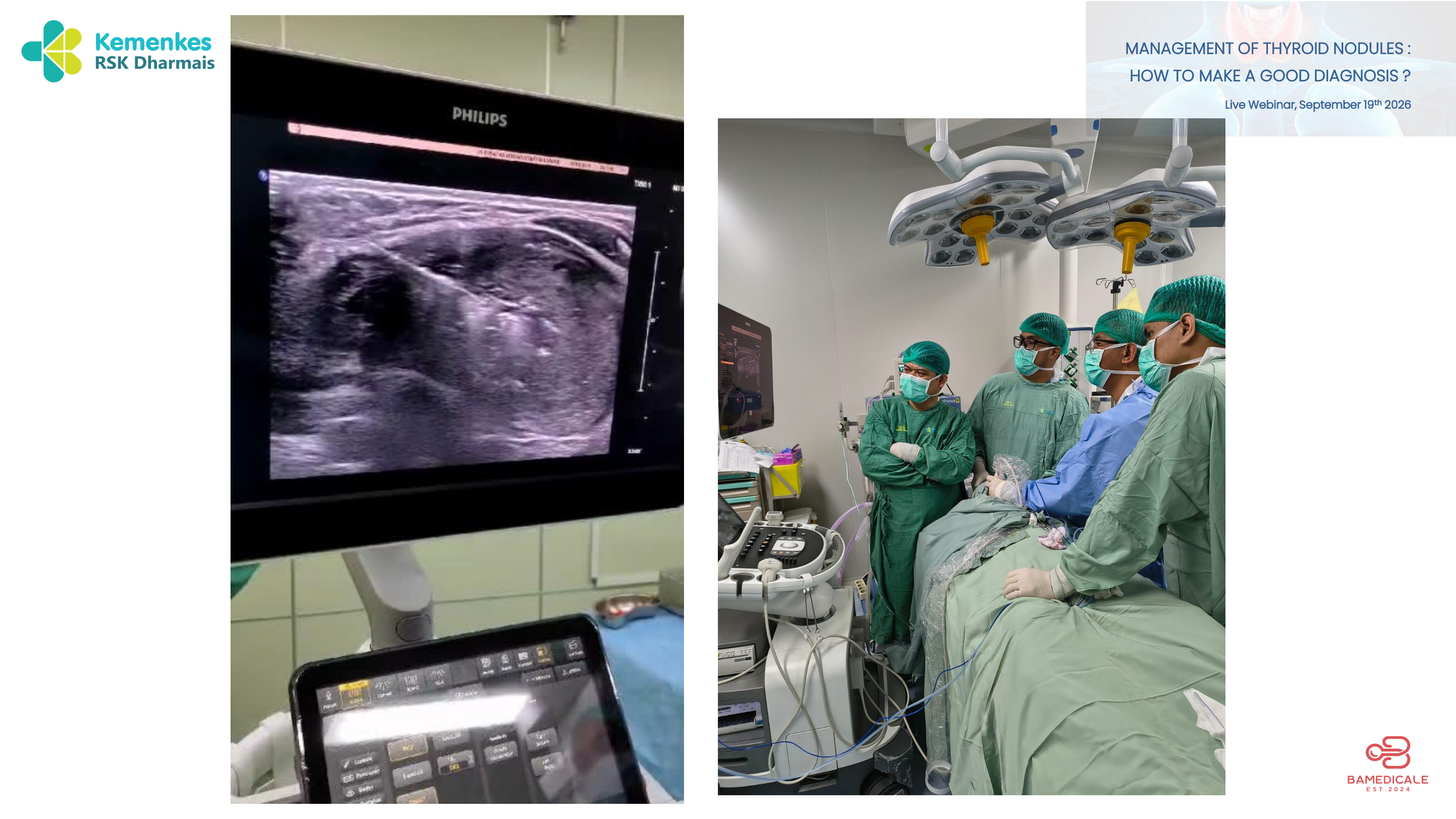

Slide 13

Original PDF · page 13 of 20
Read selectable slide text
MANAGEMENT OF THYROID NODULES :
HOW TO MAKE A GOOD DIAGNOSIS ?
Live Webinar, September 19th 2026
Inspect original figures
Original embedded figure 1 from PDF page 13Original embedded figure 2 from PDF page 13

Slide 14

Original PDF · page 14 of 20
Read selectable slide text
MANAGEMENT OF THYROID NODULES :
HOW TO MAKE A GOOD DIAGNOSIS ?
Live Webinar, September 19th 2026

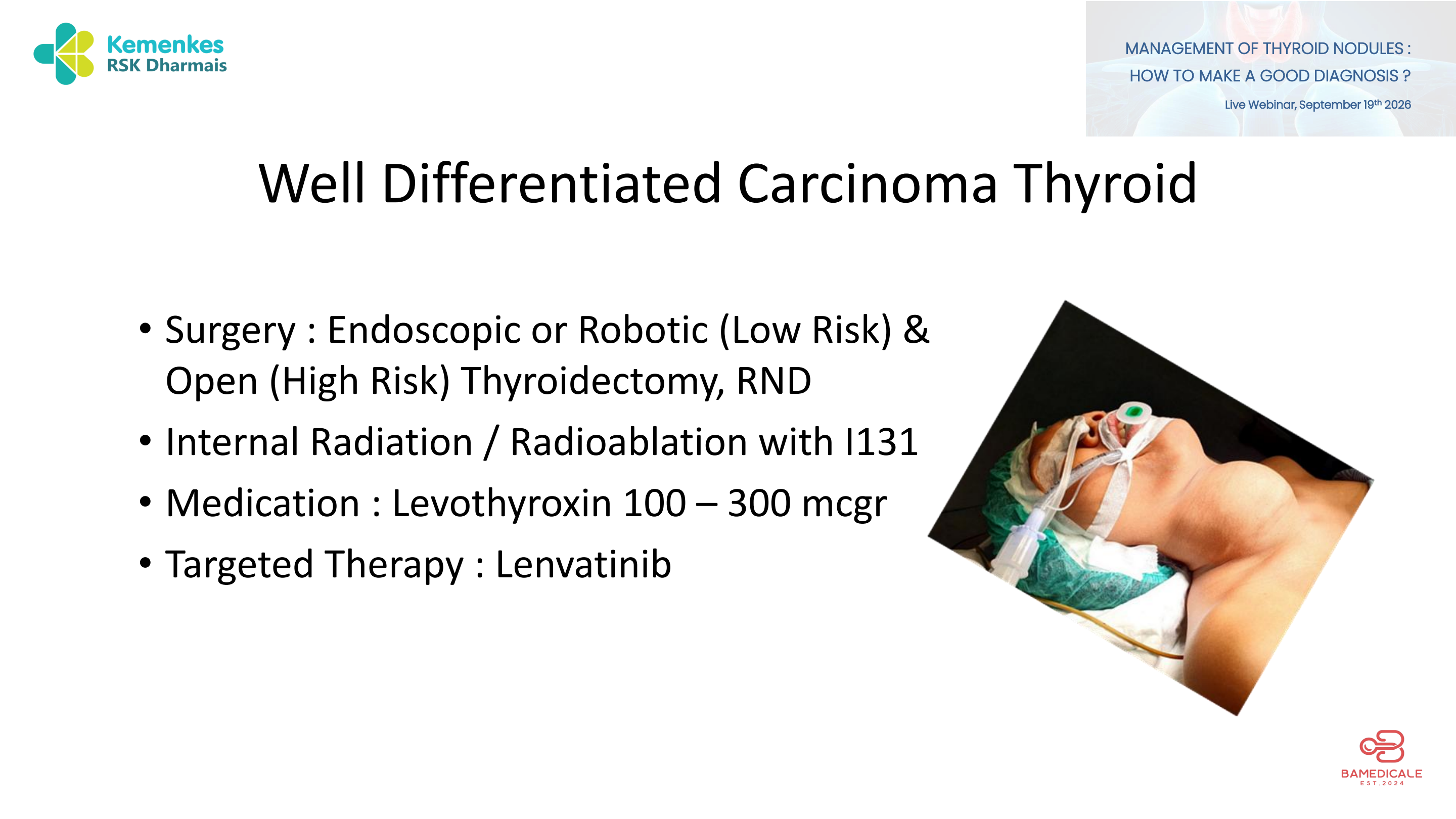

Well Differentiated Carcinoma Thyroid
• Surgery : Endoscopic or Robotic (Low Risk) &
Open (High Risk) Thyroidectomy, RND
• Internal Radiation / Radioablation with I131
• Medication : Levothyroxin 100 – 300 mcgr
• Targeted Therapy : Lenvatinib
Inspect original figures
Original embedded figure 1 from PDF page 14

Slide 15

Original PDF · page 15 of 20
Read selectable slide text

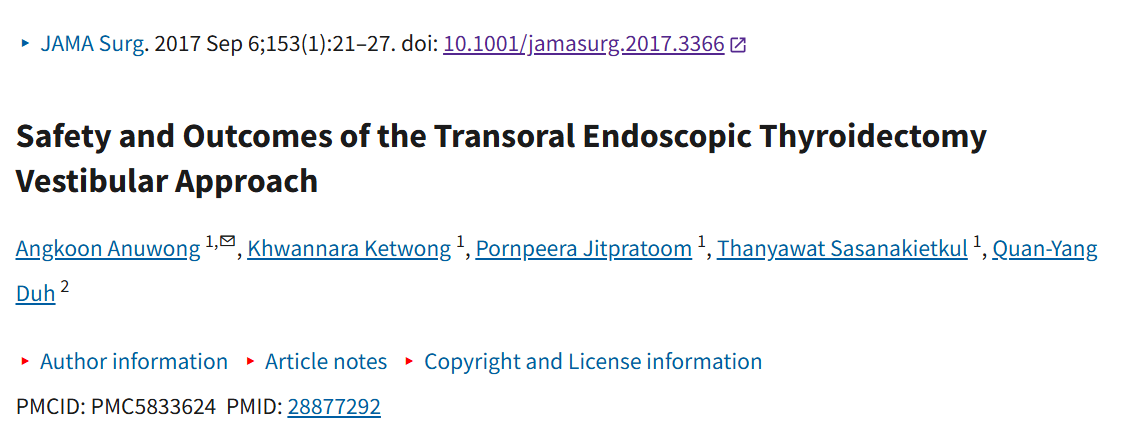

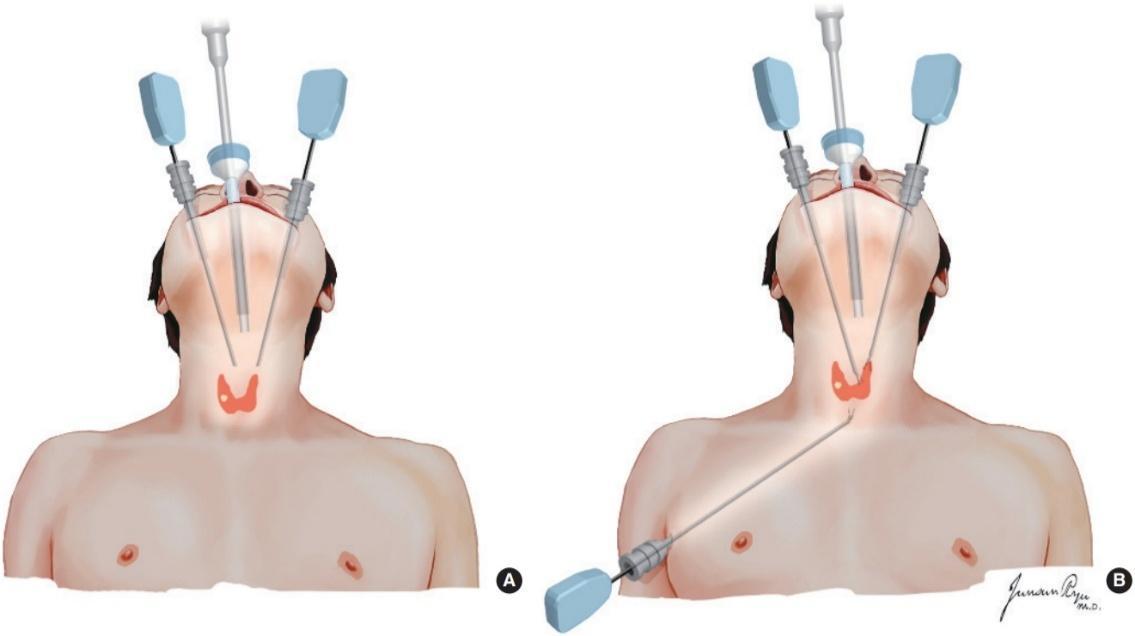

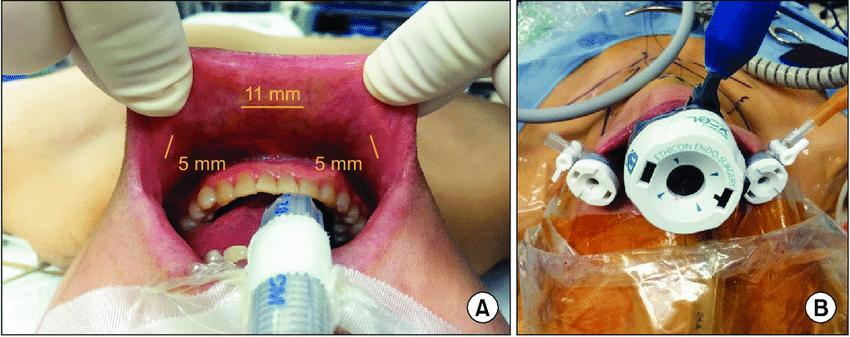

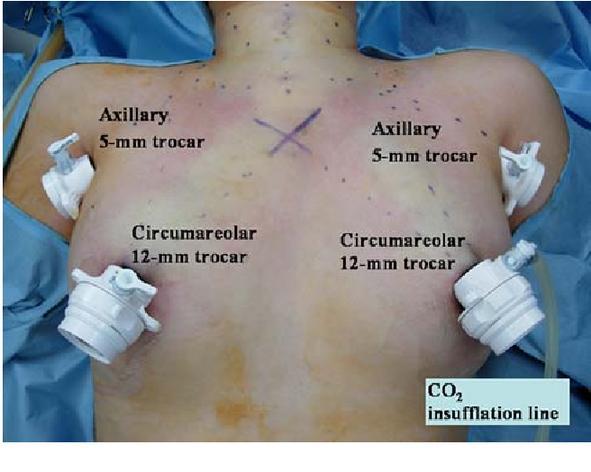

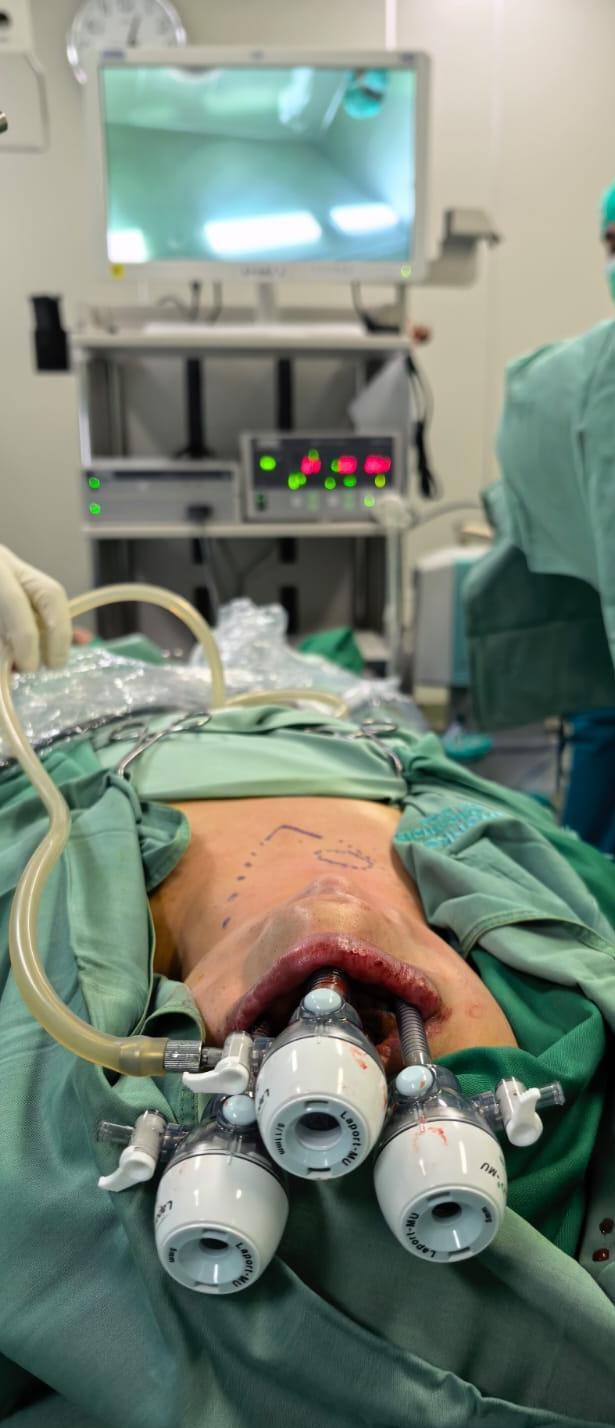

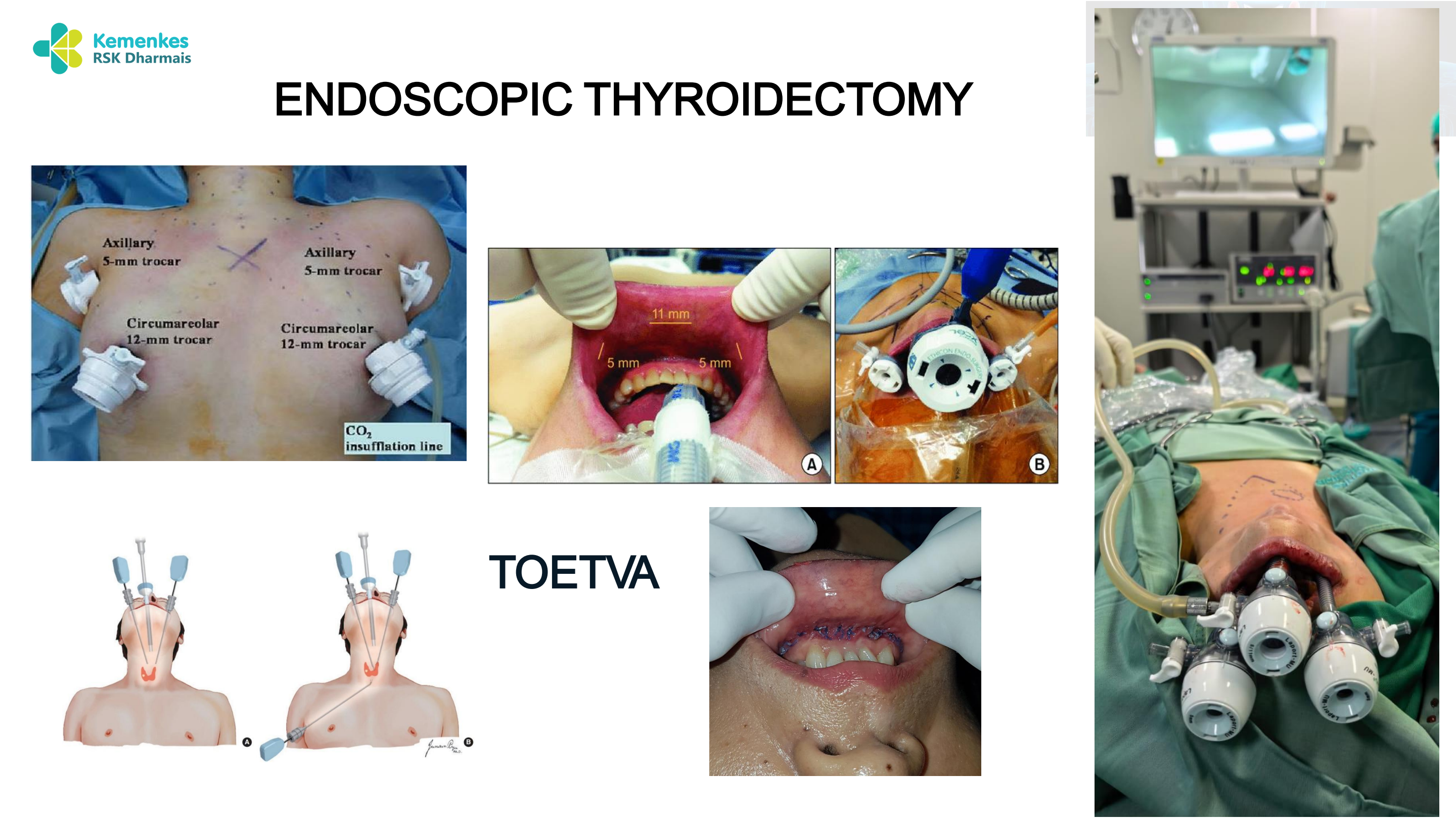

ENDOSCOPIC THYROIDECTOMY
TOETV A
MANAGEMENT OF THYROID NODULES :
HOW TO MAKE A GOOD DIAGNOSIS ?
Live Webinar, September 19th 2026
Inspect original figures
Original embedded figure 1 from PDF page 15Original embedded figure 2 from PDF page 15Original embedded figure 3 from PDF page 15Original embedded figure 4 from PDF page 15Original embedded figure 5 from PDF page 15

Slide 16

Original PDF · page 16 of 20

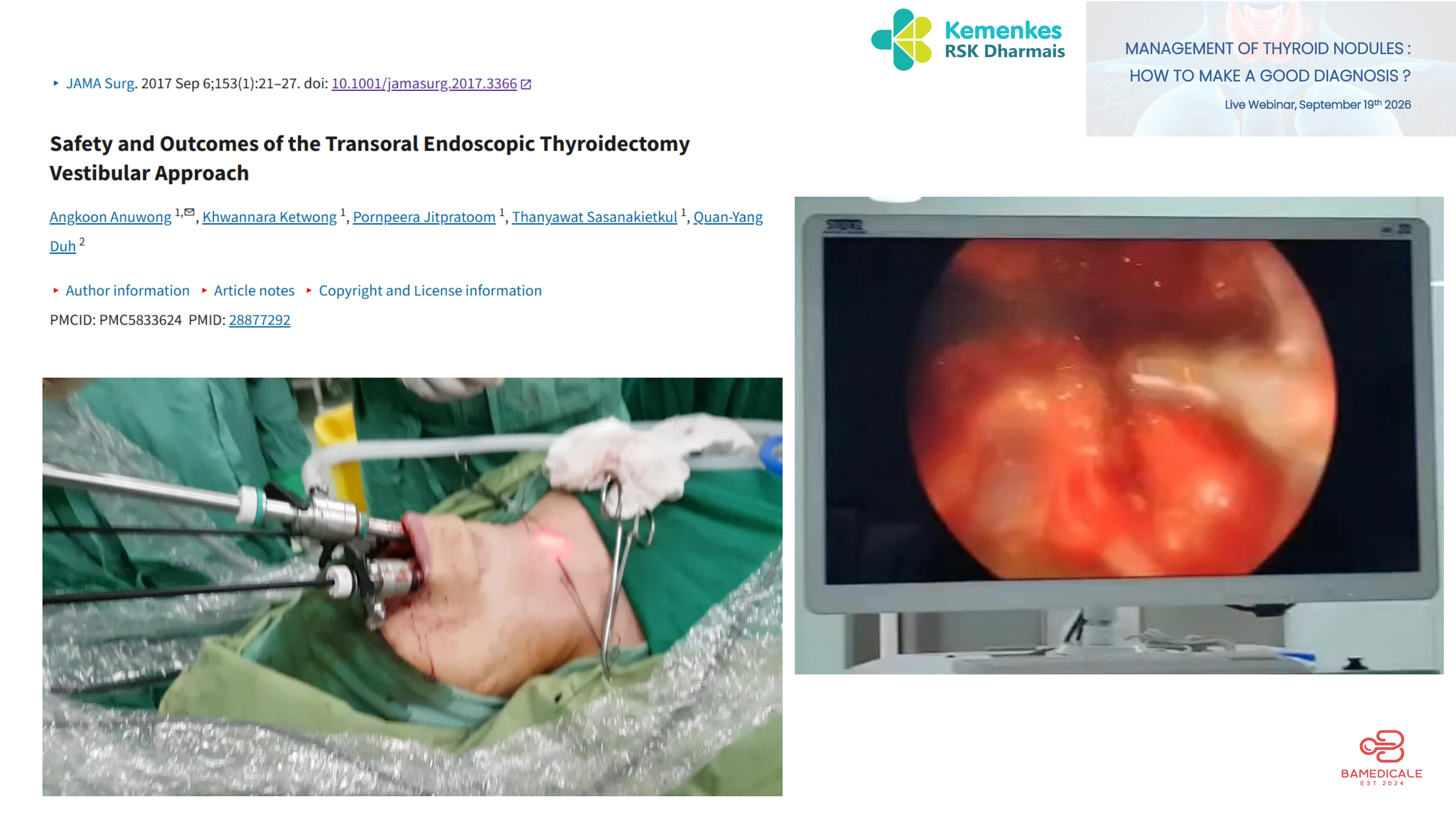

Read selectable slide text
MANAGEMENT OF THYROID NODULES :
HOW TO MAKE A GOOD DIAGNOSIS ?
Live Webinar, September 19th 2026
Inspect original figures
Original embedded figure 1 from PDF page 16Original embedded figure 2 from PDF page 16Original embedded figure 3 from PDF page 16

Slide 17

Original PDF · page 17 of 20
Read selectable slide text
MANAGEMENT OF THYROID NODULES :
HOW TO MAKE A GOOD DIAGNOSIS ?
Live Webinar, September 19th 2026

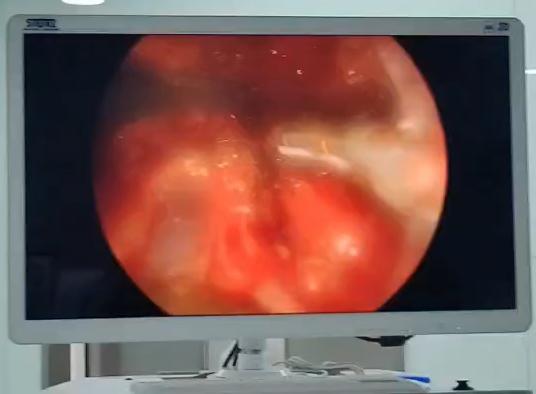

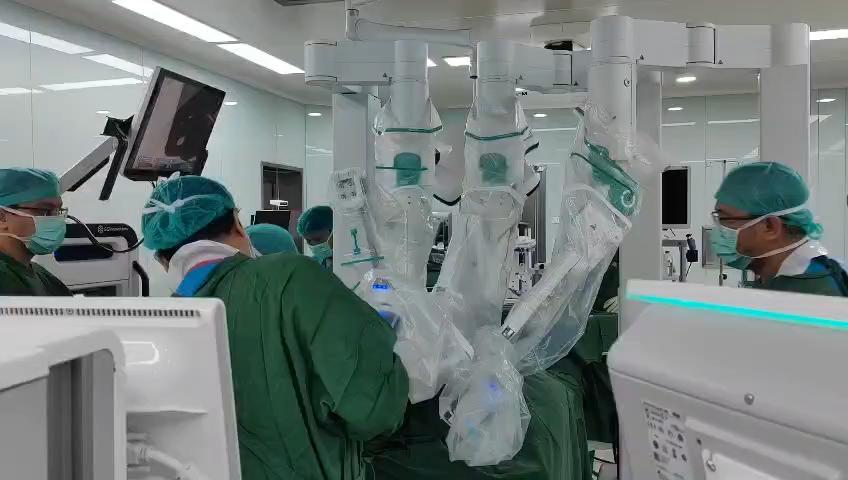

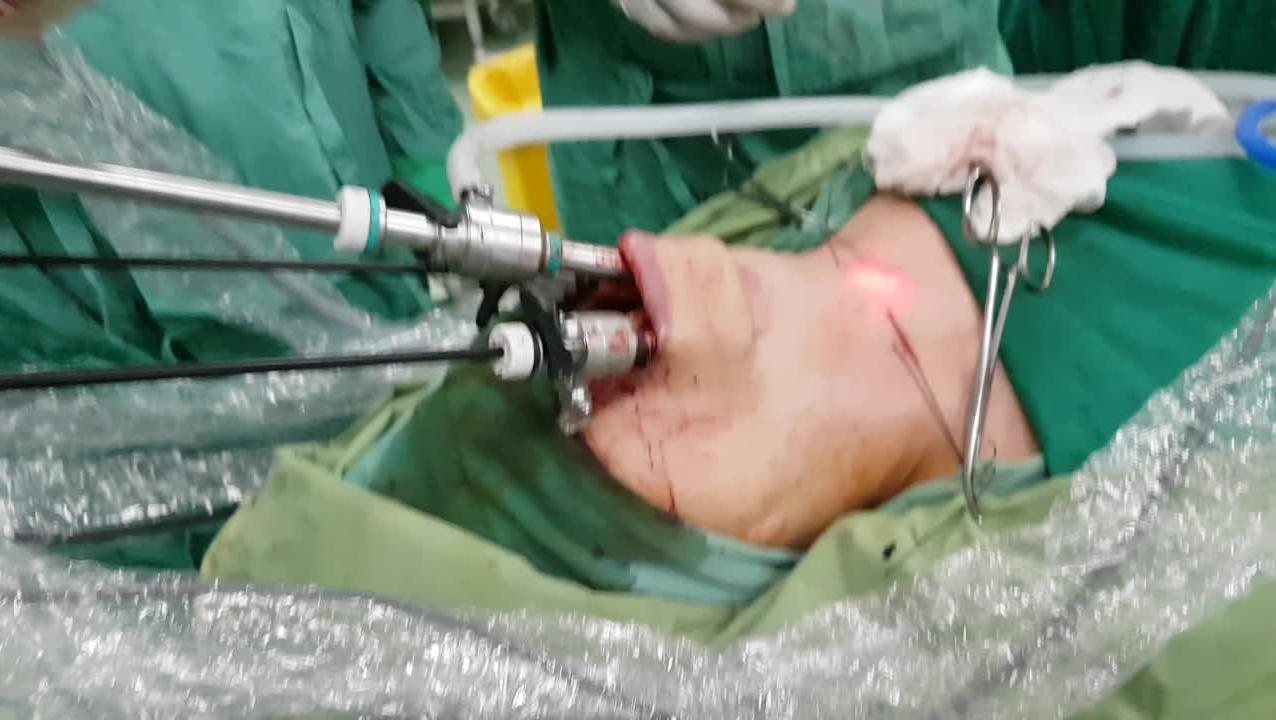

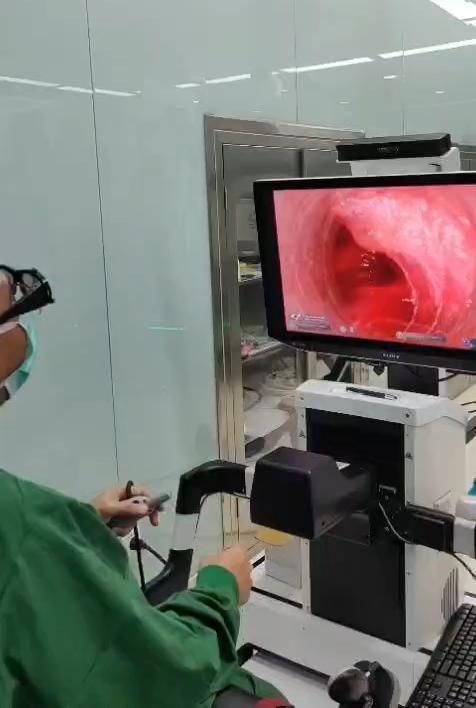

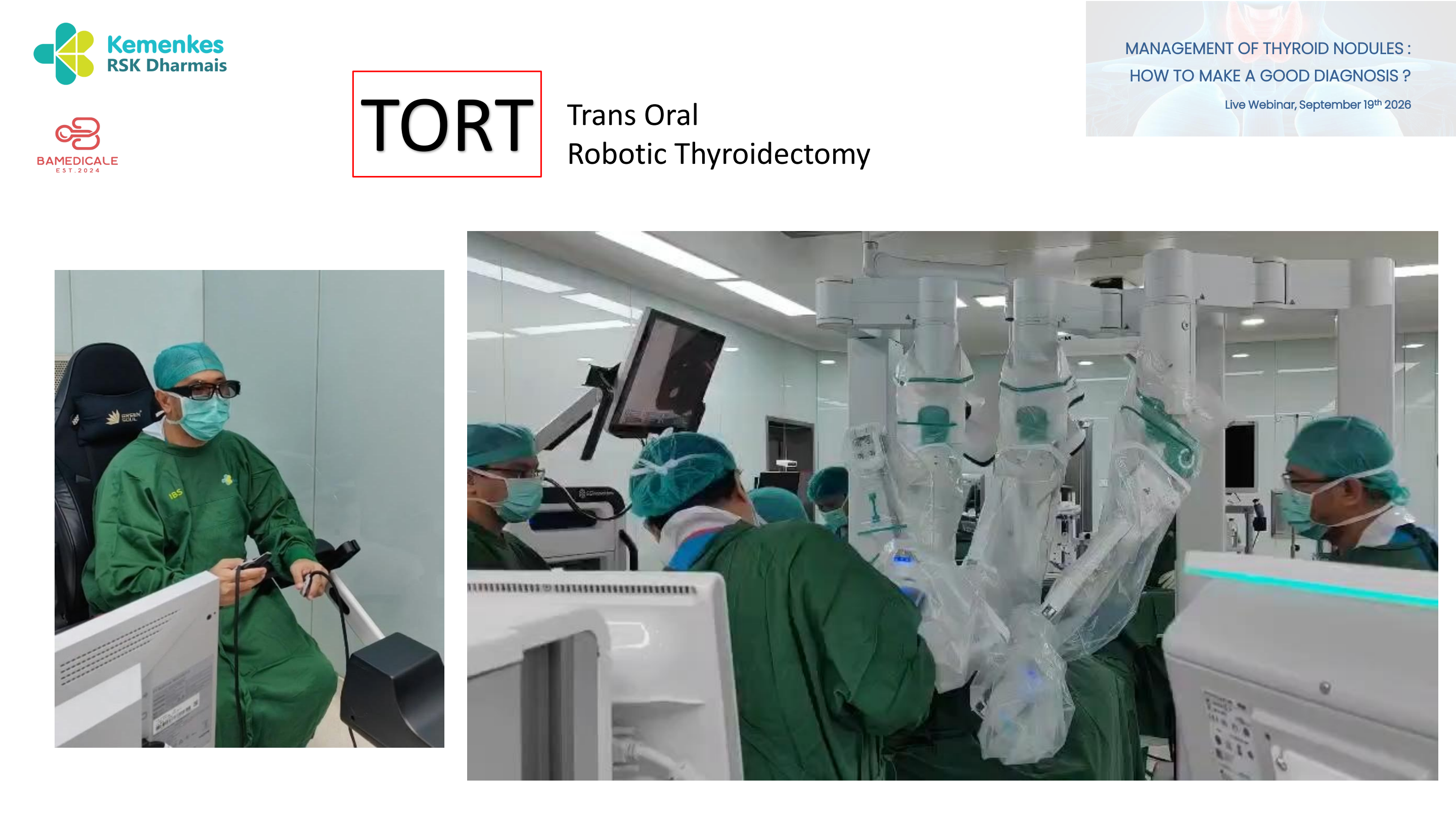

TORT
 Trans Oral
Robotic Thyroidectomy
Inspect original figures
Original embedded figure 1 from PDF page 17Original embedded figure 2 from PDF page 17Original embedded figure 3 from PDF page 17

Slide 18

Original PDF · page 18 of 20
Read selectable slide text
MANAGEMENT OF THYROID NODULES :
HOW TO MAKE A GOOD DIAGNOSIS ?
Live Webinar, September 19th 2026

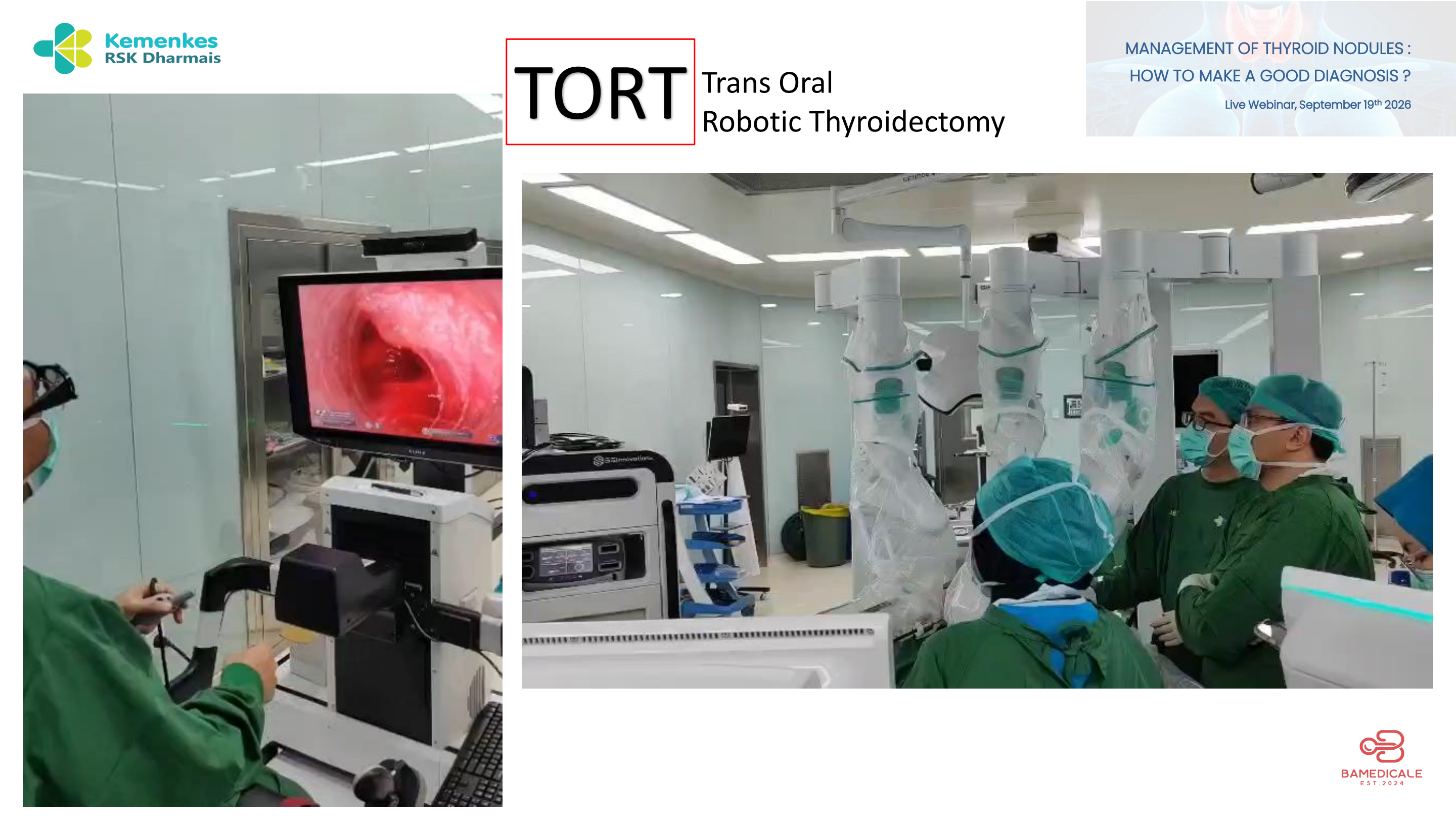

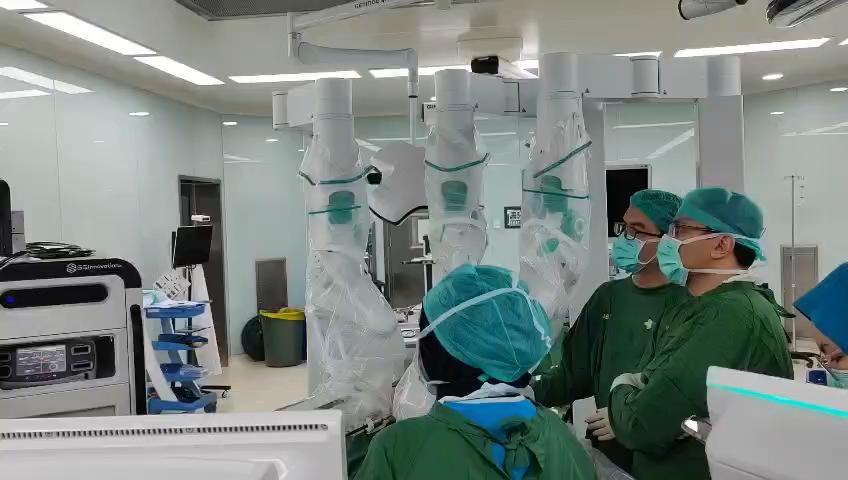

TORT Trans Oral
Robotic Thyroidectomy
Inspect original figures
Original embedded figure 1 from PDF page 18Original embedded figure 2 from PDF page 18Original embedded figure 3 from PDF page 18

Slide 19

Original PDF · page 19 of 20
Read selectable slide text
MANAGEMENT OF THYROID NODULES :
HOW TO MAKE A GOOD DIAGNOSIS ?
Live Webinar, September 19th 2026

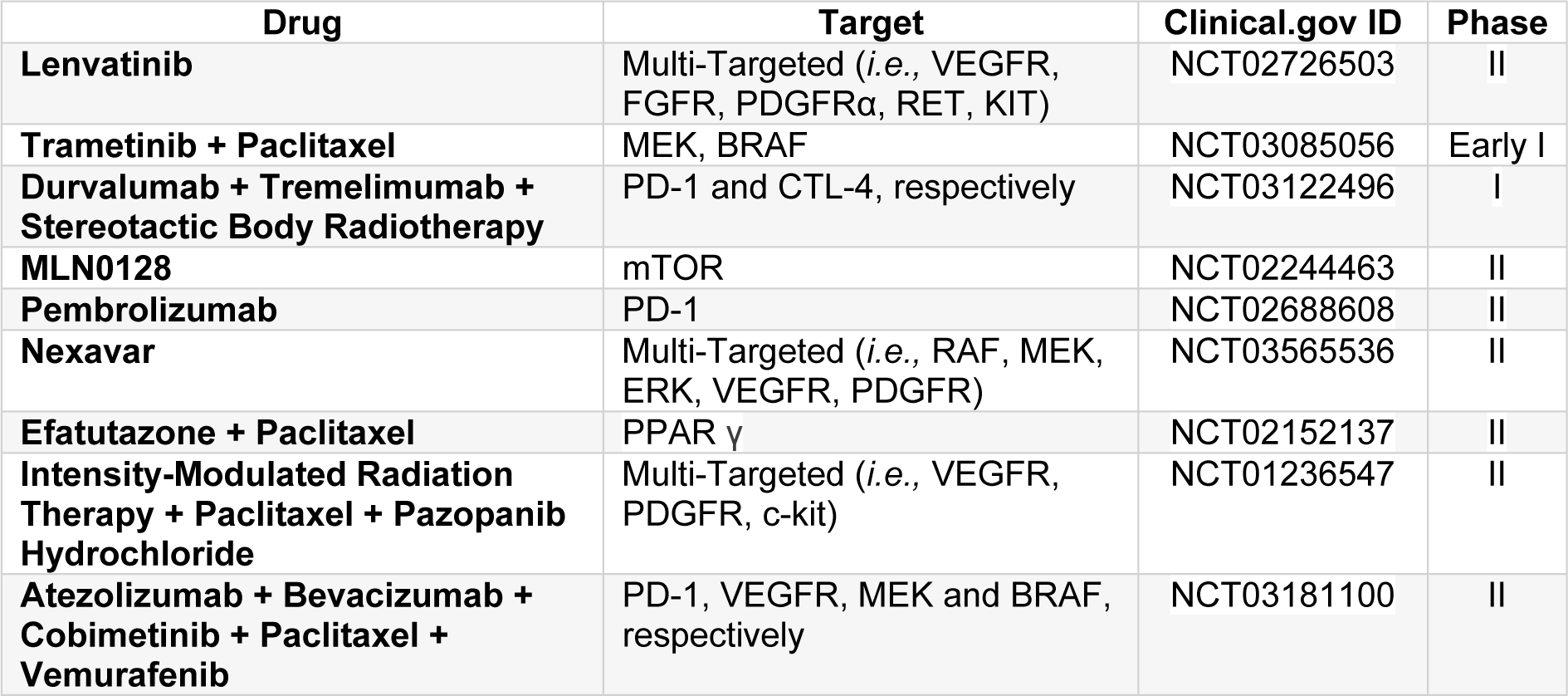

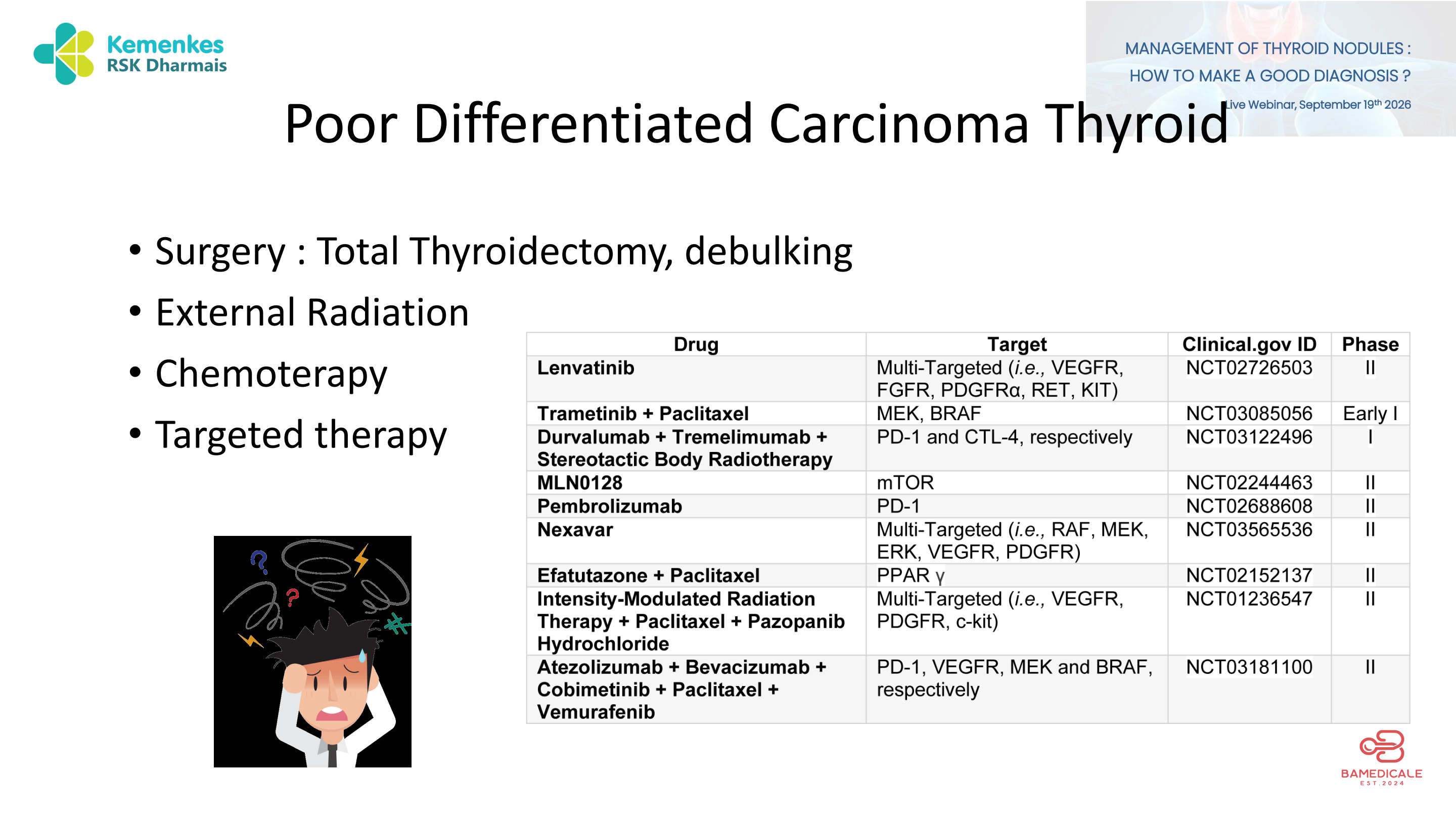

Poor Differentiated Carcinoma Thyroid
• Surgery : Total Thyroidectomy, debulking
• External Radiation
• Chemoterapy
• Targeted therapy
Inspect original figures
Original embedded figure 1 from PDF page 19Original embedded figure 2 from PDF page 19

Slide 20

Original PDF · page 20 of 20
Read selectable slide text

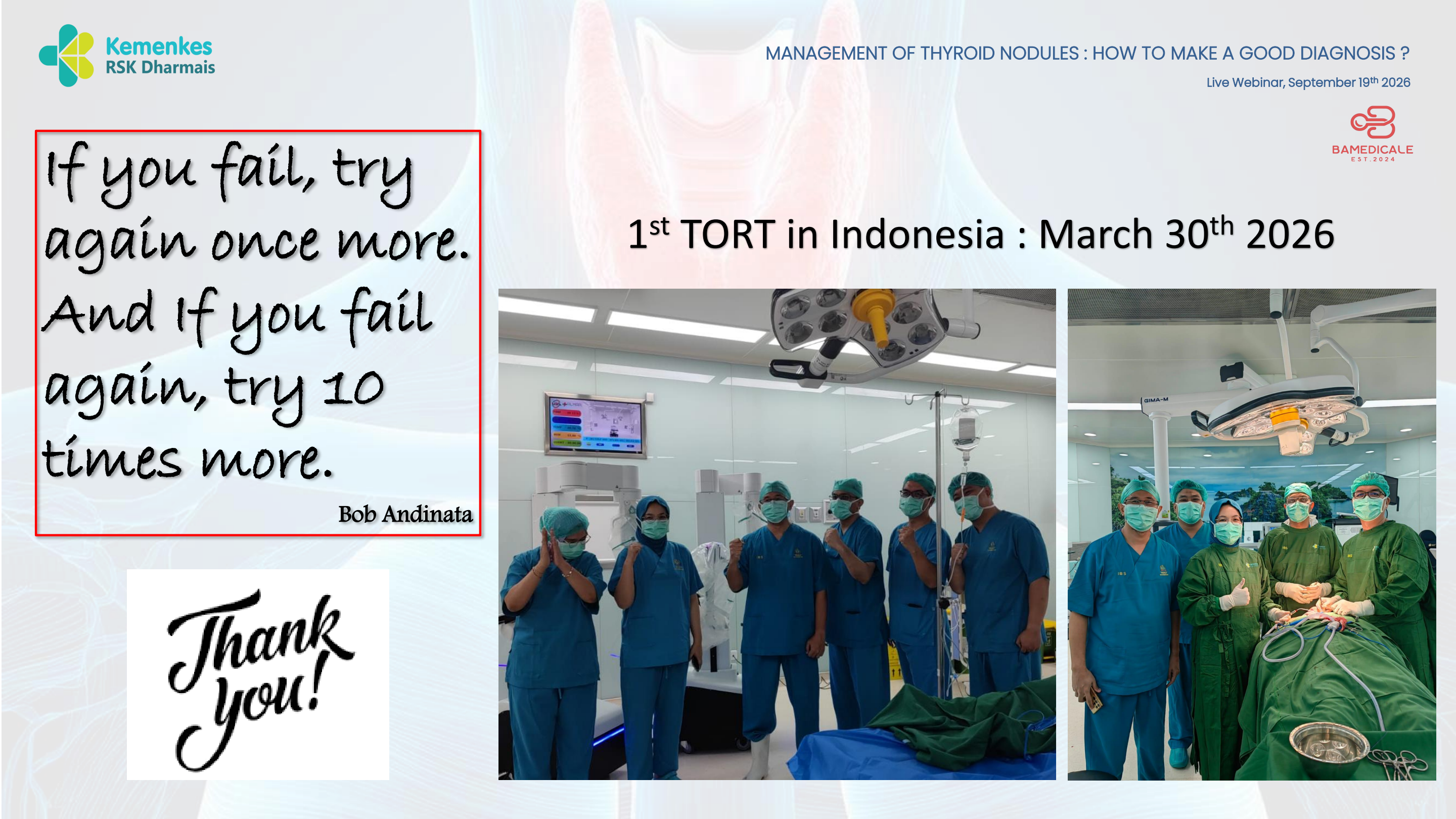

MANAGEMENT OF THYROID NODULES : HOW TO MAKE A GOOD DIAGNOSIS ?
Live Webinar, September 19th 2026
1
st

TORT in Indonesia : March 30
th

2026
If you fail, try
again once more.
And If you fail
again, try 10
times more.
Bob Andinata
